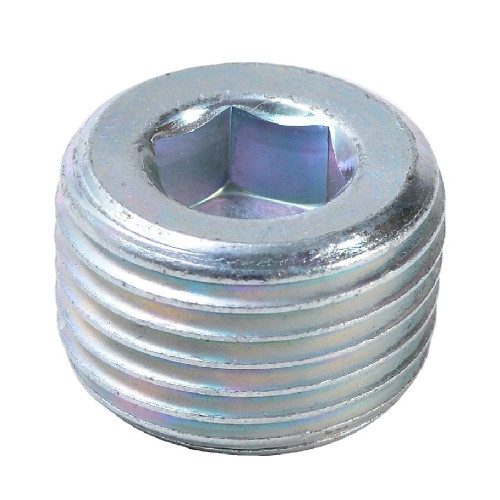

GRACO 100361 - High-Pressure Pipe Plug, 1/2 NPT, 1/2" ID, 7250 PSI (500 Bar)

High-pressure pipe plug designed for sealing and closing pipe openings in fluid handling systems, featuring durable construction for reliable performance in demanding applications

Specifications

• Inside Diameter: 1/2 inch
• Thread: 1/2 npt
• Max Working Pressure: 7250 psi (500 bar)
• Material: hex socket
• Socket Type: hex socket short
• Style: short
• Configuration: hex socket, short

Features

• 7250 psi (500 bar) pressure rating
• Hex socket design for easy installation/removal
• Short profile for tight spaces
• NPT threading for secure seal
• High pressure rating up to 7250 psi
• Hex socket design for easy installation

Applications

• Sealing unused ports in hydraulic spray systems
• Temporary closure during maintenance
• System pressure testing
• Equipment winterization
• Pipe sealing and closure
• Fluid handling systems

Compatible Equipment

• GRACO airless spray equipment
• High-pressure hydraulic systems
• Professional painting equipment
• High-pressure fluid handling equipment
• Spray systems
• Pump systems with 1/2 inch threaded ports

Related Parts

• 100271
• 101754
• 100721
• 101734

Part of GRACO's plug family for sealing hydraulic connections. Short hex socket design allows for installation in confined spaces. Part of GRACO's standard fittings line for high-pressure applications Part of GRACO's plug family for sealing threaded connections in high-pressure applications

Reference Manuals

• 3J0416EN (Page 14)
• 3J0416ENAP-A (Page 13)
• 3J0679EN (Page 14)
• 3J0679ENEU (Page 14)
• 307043 (Page 15) Monark Air Motor /
