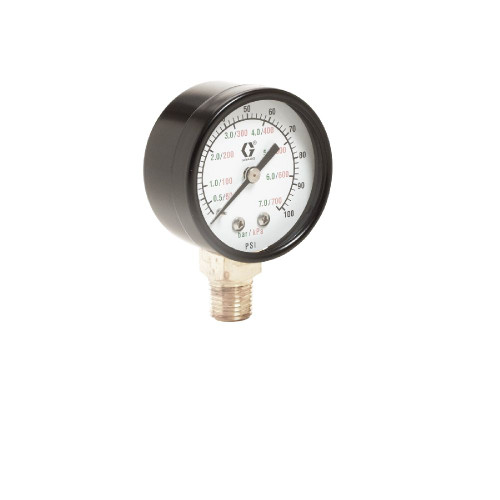

GRACO 110436 - Bottom Mount Low Pressure Air Gauge, 0-100 PSI Range, 1/8" NPT

Bottom mounted air pressure gauge with black enamel case providing accurate pressure monitoring for pneumatic systems. Features 1/8 inch NPT connection and 0-100 PSI measurement range for consistent process control in air-powered equipment applications.

Specifications

• Thread: 1/8 in NPT
• Max Working Pressure: 0-100 psi
• Material: Black enamel case
• Mount Type: Bottom mount
• Connection Thread: 1/8 in NPT
• Measurement Range: 0-100 PSI (0-7 bar) 1/8 in NPT
• Pressure Range: 0-100 psi (0-7 bar)

Features

• Black enamel case for durability
• Bottom mount configuration
• 1/8 in NPT connection
• Low pressure range suitable for air monitoring
• 1/8 inch NPT connection
• 0-100 PSI pressure range

Applications

• Air pressure monitoring in spray finishing systems
• Compressed air system pressure indication
• Paint spray equipment air pressure control
• Air pressure monitoring
• Pneumatic system control
• Process control applications

Compatible Equipment

• Double Air Regulator Assembly Part No. 235376, Series B

Related Parts

• 108190
• 101689
• 100960
• 100860
• 101359
• 101693
• 111500
• 111501

Part of GRACO's low pressure air gauge family with various pressure ranges available. Also available in back mount configuration. Part of GRACO's air gauges product line offering economical solution for air pressure regulation This is a pressure gauge component used in the Double Air Regulator Assembly. Reference number 14 in the assembly diagram.

Reference Manuals

• 345020 (Page 78)
• 3J0419EN (Page 12)
• 3J0419EN-A (Page 11)
• 308791 (Page 8) Air Regulated Pressure Cups
• 309304 (Page 13) Triton 1:1 Spray Packages
