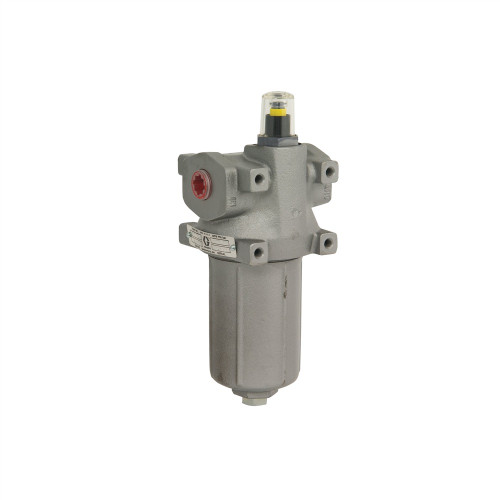

GRACO 207998 - High Pressure Red Alert Filter, 200 Mesh (74 Micron) Element, 1-1/4 NPT

GRACO 207998 - High Pressure Red Alert Filter, 200 Mesh (74 Micron) Element, 1-1/4 NPT

Item #: 207998

Price: $2,380.00

QTY:

Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Item Description

GRACO 207998 High Pressure Red Alert Filter, 200 mesh (74 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

Large flow capacity is ideal for large circulation and supply systems.

Red Alert indicator signals filter element replacement to ensure efficient filtration
Integrated mounting holes make installation to frame and equipment easy
Bottom port for installing quick flush ball valve

Compatible Equipment

Model 207998 - High Pressure Red Alert Filter, 200 Mesh (74 Micron) Element, 1-1/4 NPT

Related Parts

Reference Manuals

Specifications

Filter Area (in²)	225
Inlet Size (in)	1-1/4
Inlet Thread Type	NPT
Material	Carbon Steel
Maximum Flow Rate (GPM)	20
Maximum Working Pressure (MPa)	21
Maximum Working Pressure (psi)	3000
Outlet Size (in)	1-1/4
Outlet Thread Type	NPT
Overall Depth (in)	6.56
Overall Height (in)	13.08
Overall Width (in)	6.56
Type	Filter
Weight (lb)	30
Wetted Material	Aluminum, Iron, Fluoroelastomer, PTFE, Plated Steel

Specifications

GRACO 207998 High Pressure Red Alert Filter, 200 mesh (74 micron) element

Large flow capacity is ideal for large circulation and supply systems.

Red Alert indicator signals filter element replacement to ensure efficient filtration
Integrated mounting holes make installation to frame and equipment easy
Bottom port for installing quick flush ball valve

Compatible Equipment

Model 207998 - High Pressure Red Alert Filter, 200 Mesh (74 Micron) Element, 1-1/4 NPT

Related Parts

Reference Manuals

Specifications

Filter Area (in²)	225
Inlet Size (in)	1-1/4
Inlet Thread Type	NPT
Material	Carbon Steel
Maximum Flow Rate (GPM)	20
Maximum Working Pressure (MPa)	21
Maximum Working Pressure (psi)	3000
Outlet Size (in)	1-1/4
Outlet Thread Type	NPT
Overall Depth (in)	6.56
Overall Height (in)	13.08
Overall Width (in)	6.56
Type	Filter
Weight (lb)	30
Wetted Material	Aluminum, Iron, Fluoroelastomer, PTFE, Plated Steel
