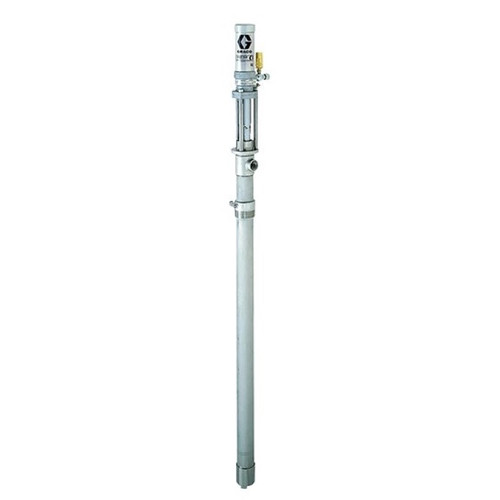

GRACO 226946 - 1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump w/ T Packing, 180 PSI
Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 PSI (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.
Maximum delivery up to 5 gpm (19 lpm) and maximum fluid working pressure up to 180 PSI (12 bar). Ideal for lower viscosity fluids.
- Air-powered for high reliability and low cost
- Delivery up to 5 gpm (19 lpm)
- Available in stainless steel or carbon steel
- UL options available when installed in accordance with NFPA
Additional Specifications
- Max Working Pressure: 180 PSI (1.2 MPa, 12.4 bar) Maximum Air Working Pressure / 180 PSI (1.2 MPa, 12.4 bar) Maximum Material Working Pressure
- Drum Size: 210 LITER (55 GAL.)
- Use: For use in drums of polyurethane chemicals
- Includes: airtight bung adapter
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 100 |
| Maximum Intermittent Cycle Rate (CPM) | 4 |
| Maximum Working Pressure (MPa) | 1.2 |
| Maximum Working Pressure (psi) | 180 |
| Minimum Flow Rate (GPM) | 180 |
| Portable | Non-Portable |
| Pump Ratio | 1:1 |
| Seal Material | PTFE |
| Type | Pneumatic Piston Pump |
Compatible Equipment
- 210 liter (55 gal) drums of polyurethane chemicals
- Feed Pump Kit 217381
Related Parts
This is part of an obsolete Feed Pump Kit 217381 that included two of these pumps along with air dryer and hoses This part is included in Feed Pump Kit 217381. Quantity required is 2. Related parts include hoses (217382, 200991), bushing (100206), and air dryer (217341).
