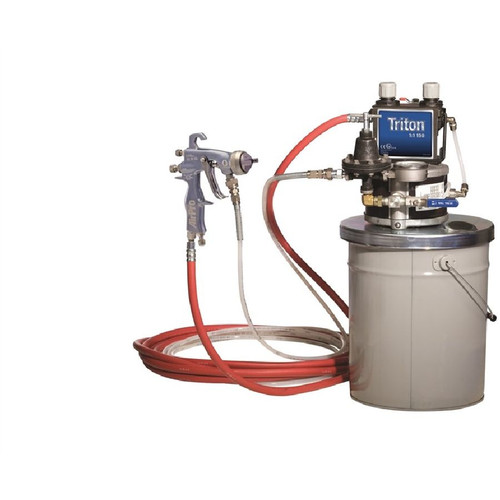

GRACO 233471 - Triton SST Spray Package, Pail, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
Triton air operated diaphragm pump spray package designed for metal applications, featuring affordable fine finish spraying with consistent spray pattern and uniform film thickness. Durable package requires little maintenance and is paired with Stellair HVLP Gun for professional results.
Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Quick color changes and fast material refills save time and money
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
- Rugged, stainless steel construction pump handles a wide variety of fluids
Additional Specifications
- Material: Aluminum
- Wall Mount: yes
- Nozzle Size: .055 in (1.5 mm)
- Regulator Pressure: 100 PSI (0.7 MPa, 7 bar)
- Pump Type: Stainless Steel
- Gun Type: Stellair HVLP Spray Gun
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers, Waterborne |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | AirPro |
| Gun Technology | HVLP |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Mount Location | Pail Mount |
| Mount Type | Pail Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | HVLP |
| Type | Air-Powered Sprayer |
| Weight (lb) | 28 |
Features
- Air operated diaphragm pump technology
- Consistent spray pattern and uniform film thickness
- Durable package with little maintenance required
- Affordable fine finish spraying capability
- Wall mount configuration
- Includes suction hose, air hose, and fluid hose
Applications
- Metal applications
- Wood applications
- Fine finish spraying
- Professional spray finishing
- Industrial coating applications
- High-volume liquid spraying
Compatible Equipment
- Triton air operated diaphragm pumps
- TRITON spray finishing systems
- AirPro HVLP spray guns
- Pail Mount Series
Related Parts
- 233468 - Triton Alum Spray Package, Pail, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233469 - Triton SST Spray Package, Pail, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233470 - Triton Alum Spray Package, Pail, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233475 - Triton Alum Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233476 - Triton SST Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233477 - Triton Alum Spray Package, Stand, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 233478 - Triton SST Spray Package, Stand, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233482 - Triton Alum Spray Package, Cart, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055"Nozzle for Metal Applications
- 233483 - Triton SST Spray Package, Cart, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233484 - Triton Alum Spray Package, Cart, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
Kit Contents
- 2004152 - Stellair HVLP Gun 1.4 mm (.055 in) nozzle
- Air hose (25 ft)
- Fluid hose (25 ft)
- Suction hose
- TRITON pump unit
- 4-legged stand mount
- 100 PSI stainless steel fluid regulator
- Suction hose and gun (as noted in footnote)
- AirPro HVLP Gun with .055 in (1.5 mm) nozzle
Part of the Stellair General Metal Application Packages family. Package includes wall mount, 100 PSI fluid regulator, and is designed specifically for metal finishing applications. HVLP and compliant packages include fluid regulator. Stainless steel packages use 100 PSI (0.7 MPa, 7 bar) stainless steel fluid regulator. Bare packages do not include hose and gun. Available in Pail Mount Series configuration only. Has CE approval (II 2 G Ex h IIB T6 Gb) but no UKCA approval indicated.
