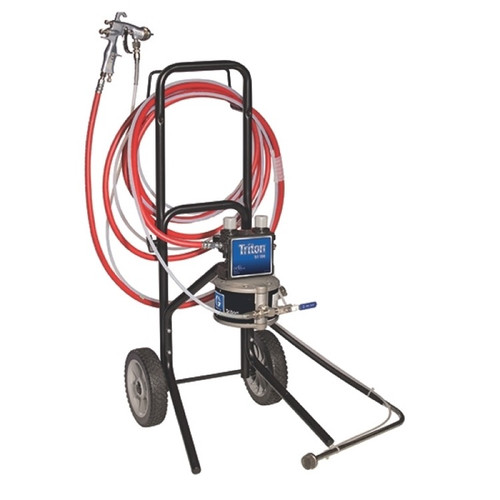

GRACO 233485 - Triton SST Spray Package, Cart, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
Triton air operated diaphragm pump package designed for metal applications, featuring a cart-mounted system with 100 PSI fluid regulator, suction hose capability, and Stellair HVLP Gun with 1.4 mm (.055 in) nozzle. Delivers affordable, fine finish spraying with consistent spray pattern and uniform film thickness while requiring little maintenance.
Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Quick color changes and fast material refills save time and money
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
- Rugged, stainless steel construction pump handles a wide variety of fluids
Additional Specifications
- Material: Stainless Steel construction
- Nozzle Size: .055 in (1.5 mm)
- Gun Type: AirPro HVLP Gun
- Regulator Pressure: 100 PSI (0.7 MPa, 7 bar)
- Pump Type: Double diaphragm design
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers, Waterborne |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | AirPro |
| Gun Technology | HVLP |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Mount Location | Cart Mount |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | HVLP |
| Type | Air-Powered Sprayer |
| Weight (lb) | 36 |
Features
- Air operated diaphragm pump technology
- Durable package with little maintenance required
- Consistent spray pattern and uniform film thickness
- Cart-mounted for portability
- 100 PSI fluid regulator included
- Suction hose capability
Applications
- Metal applications
- Fine finish spraying
- Wood applications
- General metal coating
- Professional spray finishing
- Industrial coating applications
Compatible Equipment
Related Parts
- 233484 - Triton Alum Spray Package, Cart, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233491 - Triton Alum Spray Package, Wall, 60 PSI Air Regulator & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 233492 - Triton SST Spray Package, Wall, 100 PSI AIr Regulator & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 234915 - Triton Alum Spray Package, Cart, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal
- 234916 - Triton SST Spray Package, Cart, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal
- 234917 - Triton Alum Spray Package, Wall, 60 PSI Air Regulator & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal Applications
- 234918 - Triton SST Spray Package, Wall, 100 PSI AIr Regulator & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal Applications
- 233484 - Aluminum Cart-Mount with 60 PSI AirPro HVLP Gun
- 233486 - Stainless Steel Cart-Mount with 100 PSI AirPro Compliant Gun
- 233483 - Stainless Steel Cart-Mount with AirPro Conventional Gun
Kit Contents
- 2004152 - Stellair HVLP Gun 1.4 mm (.055 in) nozzle
- Air hose (7.6 m / 25 ft)
- Fluid hose (7.6 m / 25 ft)
- Fluid regulator (100 PSI stainless steel)
- Suction hose
- AirPro HVLP Gun
- .055 in (1.5 mm) nozzle
Part of the Triton Air Spray Packages family specifically designed for metal applications with HVLP gun technology HVLP and compliant packages include fluid regulator. Stainless steel packages use 100 PSI (0.7 MPa, 7 bar) stainless steel fluid regulator. Bare packages do not include hose and gun. Part of the Triton Air Spray Package family. Alternative configurations available with different spray gun options.
