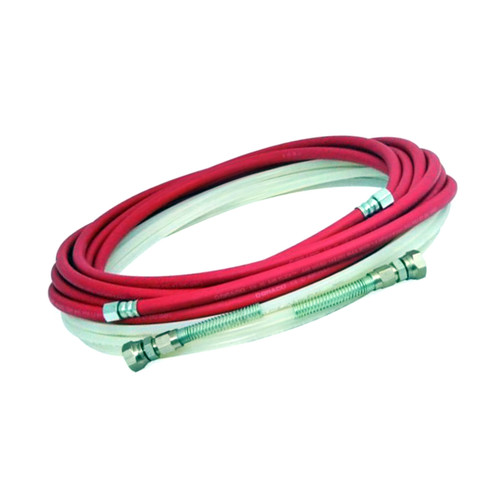

GRACO 233499 - Air/Fluid Hose, 25 ft SS Couplings, fits AirPro Spray Guns, 3/8 NPSM(F) fluid, 1/4 NPSM(F) air

The Graco 233499 is a bundled hose set that includes a 25 ft (7.6 m) air/fluid hose with stainless steel couplings that fits AirPro spray guns. It can be used to move, measure, control, dispense, and apply a wide range of fluids and viscous materials.

Specifications

• Length: 25 ft (7.6 m)
• Thread: 3/8 npsm(F) fluid, 1/4 npsm(F) air
• Material: Stainless Steel Couplings
• Coupling Type: Stainless Steel
• Fluid Hose Thread: 3/8 npsm(F)
• Air Hose Thread: 1/4 npsm(F)
• Fitting Material: sst (stainless steel)

Features

• Stainless steel couplings for durability and corrosion resistance
• 25 ft length provides flexibility and reach
• Designed specifically for AirPro Spray guns
• Professional-grade construction for industrial use

Applications

• Furniture manufacturing
• Automotive applications
• Appliance manufacturing
• Spray adhesive systems
• Industrial coating applications

Compatible Equipment

• AirPro Spray guns
• GRACO spray adhesive systems
• 233476 - Triton SST Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
• 233478 - Triton SST Spray Package, Stand, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
• 233475 - Triton Alum Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
• 233477 - Triton Alum Spray Package, Stand, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications

Related Parts

• 244448 - Fluid Hose, 25 ft (7.6 m) Nickel Plated Steel Couplings, fits AirPro Spray Guns
• 210868 - Air Hose, 50 ft (15.2 M), Fits Airpro Spray Guns
• 235339 - Fluid Hose, 25 ft (7.6 m) SS Couplings, fits AirPro Spray Guns
• 240425 - Air/Fluid Hose Assembly, Electrostatic, 25 ft
• 2006234 - Hose Set, Bundled, 25'
• 2006235 - Stellair ACE Quick-Connect Air & Fluid Hose Set, 25 ft

Part of GRACO's comprehensive spray adhesive system components. Available hose sizes are 0.051 in and 0.70 in (1.3 mm and 1.8 mm). This specific model features stainless steel couplings for enhanced durability compared to nickel plated alternatives. This is a hose assembly with stainless steel fittings, includes both fluid and air hoses in one assembly

Reference Manuals

• 345078 (Page 3)
• 309304 (Page 13)
• 3A3366 (Page 1)
