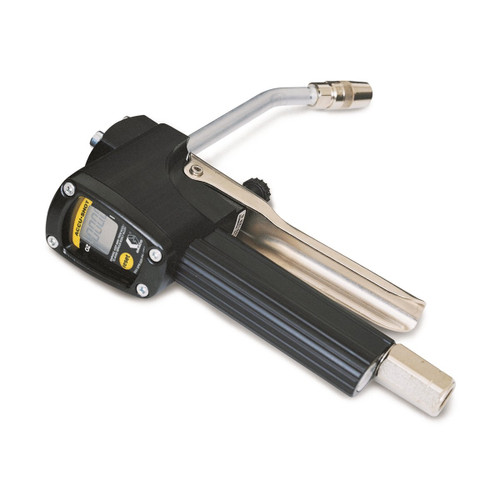

GRACO 233933 - Standard Nozzle Extension & 1/4" NPT Inlet, Metric Measurement, Includes Extension & Hydraulic Coupler, 5000 PSI
Designed to perform in heavy-equipment shops, fleet maintenance shops, municipal garages and higher-volume in-plant applications with longer plumbing runs and larger fluid usage.
Typical applications include heavy-duty dealerships, fleet service facilities, in-plant, lube trucks, and mining.
- Easy-to-Read LCD
- Easily reset electronic display.
- Accurate Grease Metering
- Utilizes two standard AA alkaline batteries.
- Handles Pressure up to 5,000 PSI (345 bar)
- Flow up to 36 oz/min (1 kg/min).
Additional Specifications
- Max Working Pressure: 5000 PSI (34.5 MPa, 345 bar) Maximum Working Pressure
- Measurement Units: grams and kilograms
| Approvals | CE |
| Compatible Material | Grease |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Extension, Hydraulic Coupler |
| Inlet Size (in) | 1/4 |
| Inlet Thread Type | NPTF |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Working Pressure (MPa) | 34.5 |
| Maximum Working Pressure (psi) | 5000 |
| Meter Accuracy (%) | ±0.3 |
| Meter Technology | Oval Gears |
| Metering Gun Weight (lb) | 2.2 |
| Nozzle Type | Rigid |
| Outlet Size (in) | 1/8 |
| Outlet Thread Type | NPTF |
| Overall Height (in) | 8.8 |
| Overall Length (in) | 3.2 |
| Overall Width (in) | 1.8 |
| Power Type | Hydraulic |
| Recommended Environment | Indoor |
| Repeatability | ±0.1 |
| Trigger Lock | Non-Locking |
| Type | Electronic Metered Dispense Valve |
| Valve Type | Metered |
| Warranty | 2 |
Compatible Equipment
- Accu-Shot Electronic Grease Meter
Related Parts
This appears to be the metric version of the Accu-Shot Electronic Grease Meter, measuring in grams and kilograms instead of ounces and pounds like part 233807
