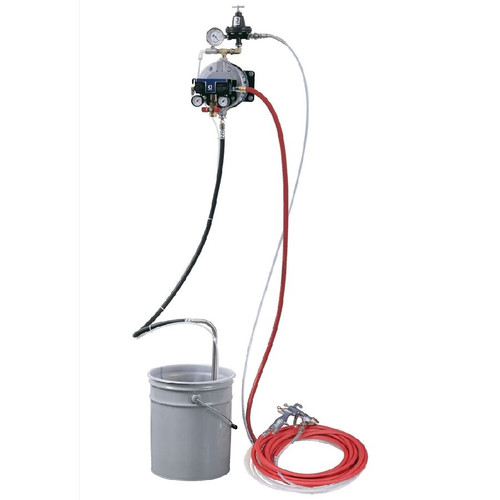

GRACO 234917 - Triton Alum Spray Package, Wall, 60 PSI Air Regulator & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal Applications, Aluminum
Triton air operated diaphragm pump spray package designed for metal applications, featuring a Stellair Compliant Gun with 1.4 mm (.055 in) nozzle. This affordable, durable package delivers consistent spray pattern and uniform film thickness with minimal maintenance requirements for professional wood and metal finishing.
Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Quick color changes and fast material refills save time and money
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
Additional Specifications
- Max Working Pressure: 60 PSI air regulator
- Material: Aluminum construction
- Nozzle Size: .055 in (1.5 mm)
- Hose Length: 7.6 m (25 ft)
- Mount Type: Wall-Mount
- Fluid Regulator: 60 PSI (0.4 MPa, 4.1 bar) acetal
- Series: Wall Mount, Series
- Pump Type: Aluminum Pump
- Gun Type: Stellair Compliant Gun
- Model Code: C
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | AirPro |
| Gun Technology | Compliant |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Mount Location | Wall Mount |
| Mount Type | Wall Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | Compliant |
| Type | Air-Powered Sprayer |
| Weight (lb) | 19 |
Features
- Air operated diaphragm pump technology
- Durable package with little maintenance required
- Consistent spray pattern and uniform film thickness
- Affordable fine finish spraying solution
- Wall mount configuration
- Includes air and fluid hoses
Applications
- Metal finishing applications
- Wood finishing applications
- Fine finish spraying
- General metal coating applications
- Spray finishing operations
- Professional coating applications
Compatible Equipment
- Stellair Compliant Gun
- Triton air spray systems
- TRITON Spray Finishing Systems
- AirPro Compliant Gun systems
- Wall Mount Series
Related Parts
- 234913 - Triton 1:1 Aluminum Stand-Mount Spray Package w/ Stellair Compliant Gun (.055" Nozzle)
- 234914 - Triton SST Spray Package, Stand, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal
- 234915 - Triton Alum Spray Package, Cart, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal
- 234916 - Triton SST Spray Package, Cart, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal
- 234918 - Triton SST Spray Package, Wall, 100 PSI AIr Regulator & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal Applications
Kit Contents
- 2004155 - Stellair Compliant Gun 1.4 mm (.055 in) nozzle
- Wall-mount spray finishing package
- 60 PSI acetal fluid regulator
- AirPro Compliant Gun with .055 in (1.5 mm) nozzle
Part of Stellair General Metal Application Packages family. Package includes wall mount, 60 PSI air regulator, and both air and fluid hoses (7.6 m/25 ft each). Bare packages do not include hose and gun. Wall-mount units do not include suction hose, siphon tube or gun. Must order separately. HVLP and compliant packages include fluid regulator. This is part of the Stellair Compliant Gun series with aluminum pump configuration. Has CE approval marking but no UKCA approval shown.
