GRACO 239857 - 55 Gallon Drum Size Supply Module, Inclues Elevator, Stainless Steel Drum Cover, & Back-Geared Agitator

Supply Module - 55 GALLON (200 LITER) DRUM SIZE - Includes elevator, stainless steel drum cover, and back-geared agitator

Specifications

• Max Working Pressure: 100 psi (0.7 MPa, 7 bar) Maximum Air Input Pressure
• Material: stainless steel drum cover
• Drum Size: 55 gallon (200 liter)
• Includes: elevator, stainless steel drum cover, and back-geared agitator
• Drum Capacity: 55 gallon
• Overhead Clearance Required: at least 9 ft (2.8 m)
• Suction Hose Length: 6 ft (1.8 m)
• Bolt Holes Required: four 1/2 in. bolts

Compatible Equipment

• Part No. 232078 - SST 3:1 President Module
• Part No. 232079 - CST 3:1 President Module
• Part No. 232081 - SST 3:1 President Module
• Part No. 232080 - SST Husky 1040 Module
• Part No. 232082 - SST Husky 1040 Module
• 55 gallon (200 liter) drum

Related Parts

Kit Contents

• 109 - suction tube
• 102 - back-geared agitator

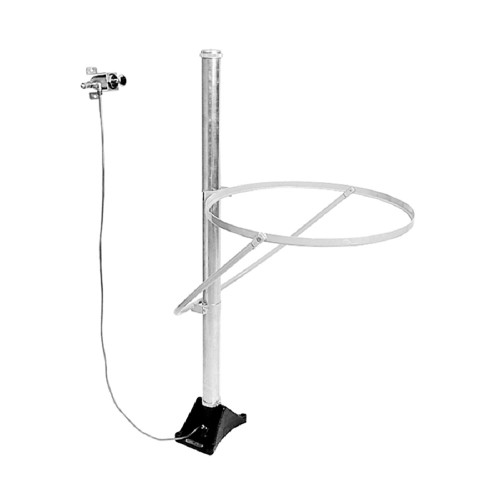

• 150 - air-operated elevator
• 114 - stainless steel drum cover

This module fits the following pump modules listed in the compatible_with section. Document number 308769E EN. Complete supply module system for 55 gallon drums. Fluid is supplied to pump through suction tube installed in shaft of agitator. Back-geared agitator keeps fluid in suspension and includes suction tube to draw fluid from drum. Air-operated elevator allows raising drum cover and agitator from empty drum and lowering agitator into new drum. This page shows an exploded diagram of the supply module assembly with component reference numbers 101-159, but does not include specifications or detailed part descriptions. The diagram shows the supply module includes components like hoses, fittings, valves, and other pneumatic/hydraulic components.

Reference Manuals

• 308769 (Page 1) 239857 Supply Module
• 308770 (Page 1) 3 :1 Ratio President Heated Circulation Pkg.
• 3A1318 (Page 8)
