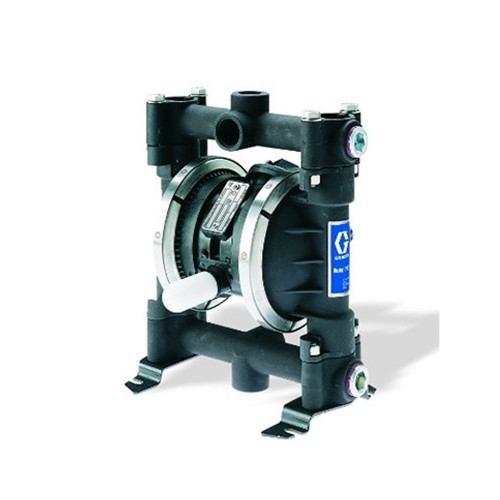

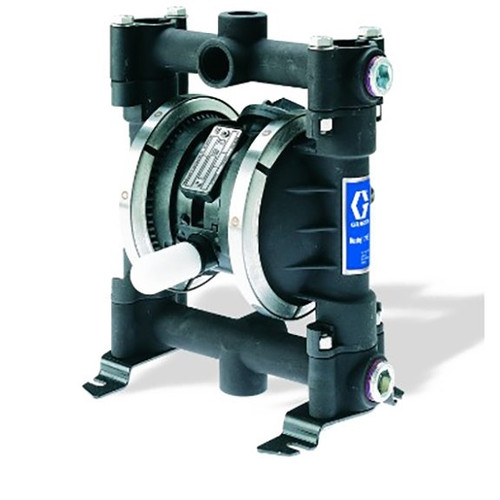

GRACO 241408 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ Single-Direction Manifolds, 100 PSI
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Additional Specifications
- Max Working Pressure: 100 PSI (0.7 MPa, 7 bar) Maximum Fluid Working Pressure, 100 PSI (0.7 MPa, 7 bar) Maximum Air Input Pressure
- Pump Type: Air-operated Diaphragm Pump
- Manifold Type: single-direction manifolds
- Series: Series D
- Atex Rating: II 2 GD Ex h IIC 66°C...135°C Gb Ex h IIIC T135°C Db
Specifications
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Buna-N |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink |
| Compressor Required | Yes |
| Connection Type | Threaded |
| Diaphragm Compatible Material | Buna |
| Diaphragm Material | Buna-N |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (GPM) | 16 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 225 |
| Maximum Solid Size (in) | 0.09375 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Overall Height (in) | 10.43 |
| Power Source | Air |
| Seat Material | Polypropylene |
| Series | 716 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
Compatible Equipment
Related Parts
Used to evacuate and transfer fluids. ATEX T-code rating is dependent on the temperature of the fluid being pumped. Fluid temperature is limited by the materials of the pump interior wetted parts. Patents Pending. Part 241408 is mentioned alongside 241407 in the Air Section service procedures. Air Section Repair Kit 25U241 is available for servicing these pumps. The page contains disassembly and reassembly procedures but no detailed specifications for the pump itself. This is a pump model (along with 241407) that is serviced by the repair kits listed on this page. The repair kits include fluid kit D05977, seats and guide kit D05900, ball kit D05070, diaphragm kit D05007, and o-ring kit 26B522.
