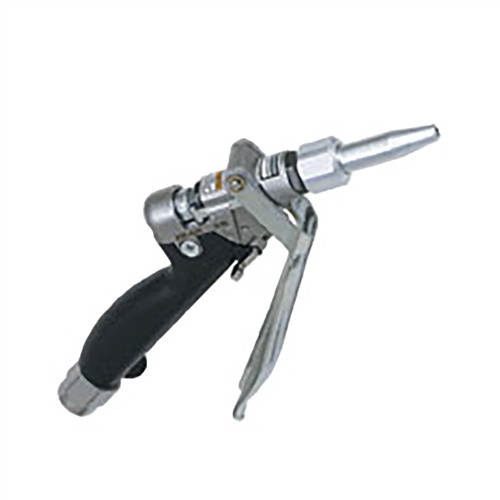

GRACO 243775 - Polyurethane Ultra-Lite 6000 Flow Gun w/ Tapered Valve Needle, 1/2 NPT(F) Inlet
Ultra-Lite 6000 pistol grip flow gun featuring tapered needle and seat design for controllable flow applications. Lightweight carbide ball needle seat construction for precision dispensing of sealants and adhesives.
Specifications
- Thread: 1/2 npt(f) inlet, Flange or 1/4 npt(f) outlet
- Max Working Pressure: 6000 psi (414 bar; 41.4 MPa)
- Material: SST, polyurethane, FKM®
- Pressure Tube: Stainless steel
- Pressure Tube Id: 0.332 in (8.1 mm)
- Valve Seat Diameter: 0.187 in (4.7 mm)
- Needle Seat Type: Carbide ball
- Head Handle Angle: 150°
- Weight: 22 oz (620 gm)
- Dimensions: 8.05 in x 1.2 in x 5.9 in (20.5 cm x 3 cm x 15 cm)
- Series: Series B
- Valve Needle Type: Tapered Valve Needle
Features
- Tapered needle design for improved fluid control
- Compatible with Ultra-Lite 6000 gun
- Enhances application precision
- Tapered needle and seat for controllable flow
- Carbide ball needle seat for durability
- High pressure capability up to 6000 psi
Applications
- Fluid dispensing applications requiring precise control
- Use with Ultra-Lite 6000 gun systems
- Controllable flow dispensing
- Sealants and adhesives application
- Precision material dispensing
Compatible Equipment
- Ultra-Lite 6000 gun
- Ultra-lite Pistol Grip Flo-Gun
- Waterbase Compatible systems
Related Parts
This is a tapered needle kit specifically designed to improve fluid control when used with the Ultra-Lite 6000 gun system Part of the Ultra-Lite 6000 flow gun family. Repair kits available for maintenance. This is part of the Ultra-lite Pistol Grip Flo-Gun family. Patent No. Des. 342,654. Manual includes sections on symbols, warning, technical data, installation, operation, service, parts, warranty and phone number.
