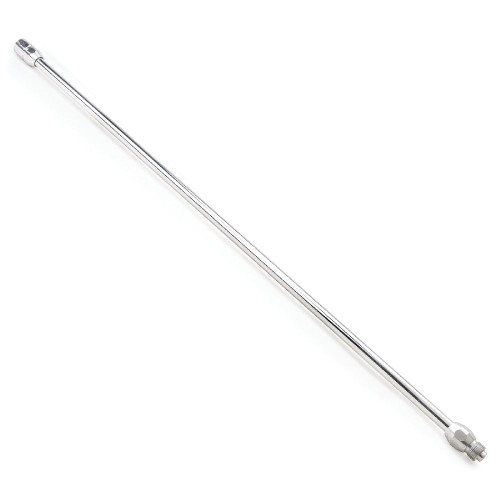

GRACO 244163 - Pole Gun Extension, 3 ft, 3600 PSI, 7/8 in (22 mm)

Pole Gun Extension designed to eliminate the hassles of ladders and scaffolding for safely spray hard-to-reach areas like high walls, vaulted ceilings, stairways, and soffits. Provides better spray control and less fatigue in high or recessed areas while completing jobs faster with less setup time.

Eliminate the hassles of ladders and scaffolding to safely spray hard-to-reach areas like high walls, vaulted ceilings, stairways, and soffits. Complete the job faster with less setup time with a pole gun and extension.

Additional Specifications

• Length: 0.9 m (3 ft)
• Thread: 7/8 in (22 mm)
• Max Working Pressure: Maximum WPR: 3600 PSI, (248 bar, 24.8 MPa)

Specifications

Features

• Extends reach for spray applications
• High pressure rating up to 3600 PSI
• Compatible with Contractor In-Line Valve and CleanShot Shut-Off Valve
• Can create different length pole guns when combined with other components
• Provides better spray control and less fatigue in high or recessed areas
• Balanced design with no excessive weight at the end of pole

Applications

• Extended reach spraying
• Hard to reach areas
• Overhead applications
• Creating custom length spray setups
• High walls spraying
• Vaulted ceilings

Compatible Equipment

• Contractor In-Line Valve
• CleanShot Shut-Off Valve
• Pole guns
• Pole Gun with RAC X LP 517
• Model 287023 - Pole Gun, 3 ft, Series A (North America), Model 287026, Series A (Europe)

Related Parts

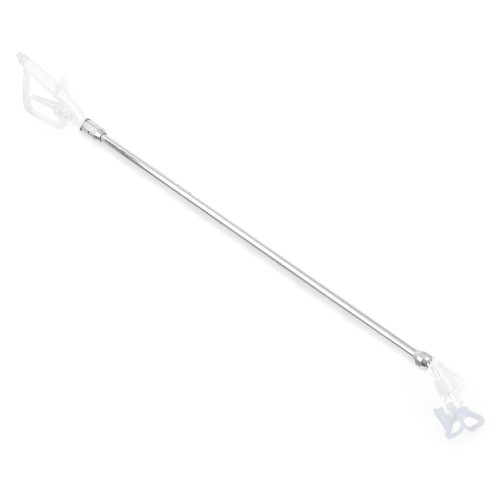

• 244164 - Pole Gun Extension, 6 Ft, 22 mm (7/8"), 3600 PSI (248 Bar, 24.8 MPa)
• 287019 - Rac x Tip Extension, Rac x Compatible
• 287020 - Rac x ™ Tip Extension, Rac x Compatible
• 287021 - Rac x ™ Tip Extension, Rac x Compatible
• 287022 - Rac x Tip Extension, 30", Rac x Compatible
• 243295 - Rac 5 Tip Extension, 22 mm (7/8"), 4050 PSI (280 Bar, 28.0 MPa)
• 243296 - Rac 5 Tip Extension, 4050 PSI (280 Bar, 28.0 MPa)
• 243297 - RAC 5 Tip Extension, 20"
• 243298 - Rac 5 Tip Extension, 4050 PSI (280 Bar, 28.0 MPa)
• 232121 - Extension, Roller, Fixed, .25M

Part of the Pole Gun Extensions family with various length options available. Can be used with Contractor In-Line Valve and CleanShot Shut-Off Valve to create different length pole guns. Part of the Extended Reach Tools family designed to reduce setup time with poles instead of ladders and scaffolding This is a 3-ft extension component used with various Pole Gun models across different regions. There is also a 6-ft extension variant (244164) available for the same compatible models.

Reference Manuals

• 343214 (Page 13)
• 344386 (Page 8)
• 309237 (Page 1)
• 312476 (Page 1)
• 332520 (Page 5)
