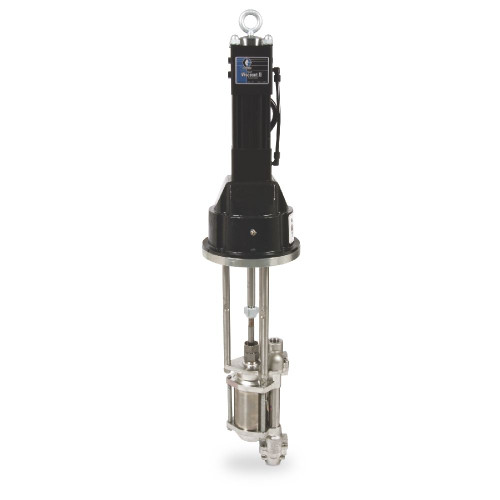

GRACO 244656 - Bulk Grease Transfer Packageviscount Ii Pump, 1 NPT(M) & 2 NPSM(F) Connections

Model 244656 - appears to be a fluid transfer system variant

Specifications

• Thread: 1 npt(m) and 2 npsm(f) connections
• Max Working Pressure: 1500 psi (10 MPa, 103 bar) Maximum Hydraulic Input Pressure. 2300 psi (15.9 MPa, 159 bar) Maximum Fluid Working Pressure
• Maximum Hydraulic Input Pressure: 1500 psi (10 MPa, 103 bar)
• Maximum Fluid Working Pressure: 2300 psi (15.9 MPa, 159 bar)
• Suction Hose: 3 in. ID
• Maximum Distance: 18 in.
• Fluid Hose Size: 1 in. ID, 1 npt(mbe) x 6 ft

Compatible Equipment

• Stand Mount Bulk Grease Transfer Packages
• Model 244656

Related Parts

• 244651
• 244656

Kit Contents

• 116650 - COUPLING, 1-1/2 npt(f) x 1 npt(f)
• 116648 - ADAPTER, swivel, straight, 1 npt(m) x 1 npsm(f)
• 116470 - ADAPTER, swivel, straight, 2 npt(m) x 2 npsm(f)
• 236865 - MANIFOLD, hydraulic, fluid control
• 116745 - ADAPTER, swivel, straight, 1 npt(m) x 1-1/4 npsm(f)
• 115042 - HOSE, fluid, 1 in. ID, 1 npt(mbe) x 6 ft
• 116471 - VALVE, fluid shutoff, 1 npt(fbe)

Part of Stand Mount Bulk Grease Transfer Packages for dispensing non-corrosive and non-abrasive oils and lubricants only. For professional use only. Not approved for use in explosive atmospheres or hazardous (classified) locations. Related manual: 307158 - Viscount II Hydraulic Motor This appears to be part of a Typical Air-Powered Stand Mount Transfer Package system. Multiple components in the parts list specifically reference Model 244656 compatibility.

Reference Manuals

• 309344 (Page 1) Stand Mount Bulk Grease Transfer Packages
