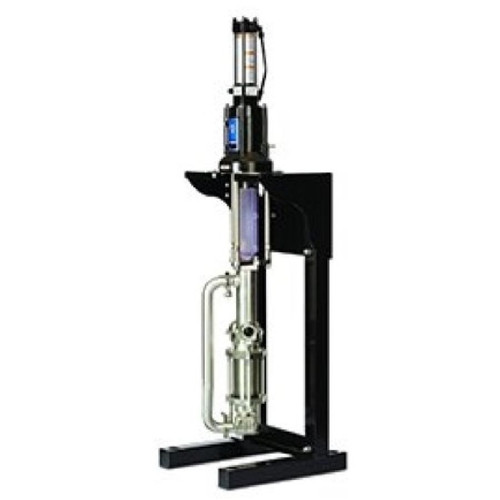

GRACO 246937 - Viscount II 1200/2400 Bin Supply Piston Pump for Ink Applications, 1200 PSI
GRACO Viscount II 1200 piston pump designed for bin supply applications in ink transfer systems. This pneumatically operated pump provides reliable, consistent fluid transfer with precise pressure control for industrial ink applications.
Save up to 80% on energy costs when you choose a hydraulic piston pump! When paired with any of Graco's priming piston pumps, the Viscount II hydraulic air motor offers exceptional cost savings by operating on 20% of the energy used by a pneumatic motor. The Viscount II, Graco's patented hydraulic motor, replaces the King, Bulldog or Senator motors with the 800 or 2100 pump.
- Clean, quiet and efficient hydraulic power
- Extremely durable hydraulic pump with long-life packing design
- Highly efficient Viscount hydraulic motor reduces energy costs
- Stainless steel wetted parts with neoprene packing
Additional Specifications
- Flow Rate: 7.5 gpm (28.4 lpm) at 60 cpm
- Max Working Pressure: 1200 PSI (82.8 bar, 8.28 MPa) max fluid pressure
- Motor Inlet Pressure: 750 PSI (oil) (51.7 bar, 5.1 MPa)
- Cfm Per Gallon: 1.6 gpm (6 lpm)
- Motor Inlet Size: 3/4 NPT (F)
- Weight: 196 lb (89 kg)
- Instruction Manual: 308149
- Hydraulic Input Pressure: 10 MPa, 103 bar (1500 PSI) Maximum Hydraulic Input Pressure
- Motor Type: Viscount Hydraulic Motor
- Series: Series A
- Pump Family: Check-Mate 2100 Pumps
| Air Inlet Size (in) | 0.7506 |
| Application | Industrial |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum Flow Rate (GPM) | 7.53 |
| Maximum Hydraulic Fluid Inlet Pressure (psi) | 1500 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Working Pressure (MPa) | 13.1 |
| Maximum Working Pressure (psi) | 1900 |
| Type | Hydraulic Piston Pump |
Features
- Pneumatically operated piston pump
- High pressure capability up to 1200 PSI
- Consistent flow rate of 7.5 gpm at 60 cycles per minute
- Large fluid outlet for high volume applications
- Robust construction with 196 lb pump weight
Applications
- Ink transfer systems
- Bin supply operations
- Industrial fluid handling
- High-pressure fluid dispensing
Compatible Equipment
- Viscount II 1200 pump systems
- 55-gallon drum supply systems
- Industrial ink application equipment
- Model 234376, Series B Viscount II 2100 Pump
- Check-Mate 2100 Pumps
Related Parts
This pump is part of the Viscount II series and is specifically configured for bin supply applications. Hydraulic controls and outlet hydraulic hose connector are not included with this model. This is reference number 2 in the parts list for Model 234376, Series B Viscount II 2100 Pump. Quantity is 1. Part of the Check-Mate 2100 Pumps family with priming piston and severe-duty rod and cylinder. Uses Viscount Hydraulic Motor technology.
