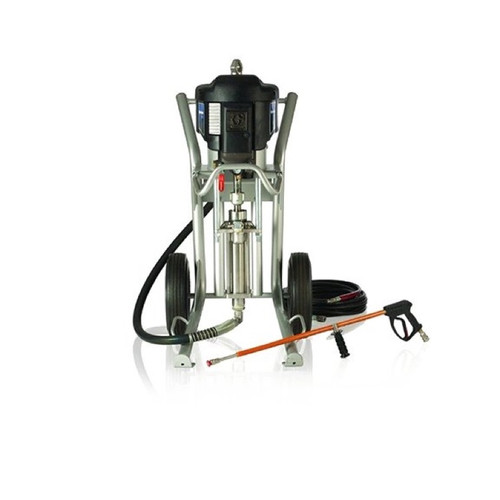

GRACO 247551 - Hydra-Clean 23:1 Cart Mount Pneumatic Pressure Washer Package, 2275 PSI (157 Bar
Professional pneumatic pressure washer package designed for heavy-duty cleaning applications across mining, oil and gas, service trucks, shipyards, agriculture, and sanitary industries. Features a 23:1 cart-mounted pump configuration for high-pressure cleaning performance.
Specifications
- Ratio: 23:1
- Flow Rate: 9.2 gpm (34.7 lpm)
- Max Working Pressure: 2275 psi (157 bar, 15.7 MPa)
- Max Air Input Pressure: 100 psi (7 bar, 0.7 MPa)
- Fluid Flow At 60 Cycles: 9.2 gpm (34.7 lpm)
- Volume Per Cycle: 19.6 cc (580 cc)
- Air Inlet Size: 3/4" npt(f)
- Fluid Inlet Size: 1 in
- Fluid Outlet Size: 3/8 in
- Pump Package: 23:1 Cart Mount
- Series: C
- Maximum Air Input Pressure: 100 psi (0.7 MPa, 7.0 bar)
- Ratio: 23:1
- Displacement Pump Size: 580 cc per cycle
- Mount Type: Portable Cart
Features
- High-pressure cleaning capability up to 2275 psi
- 23:1 pump ratio for efficient pressure multiplication
- Cart-mounted design for portability
- Pneumatic operation for reliable performance
- Professional-grade construction for industrial use
Applications
- Mining operations
- Oil and gas facilities
- Service trucks
- Shipyards
- Agriculture
- Sanitary applications
Related Parts
Kit Contents
- N65DN0 - Air Motor
- 311238 - Air Motor Manual
- 687055 - Pump Lower Part
- 311825 - Pump Manual
- SST/CF-PTFE/UHMWPE - Wetted Parts
- See Manual - Pump Std. Repair Kit
- 222846 - Optional PTFE Repair Kit
- 247878 - Std. Discharge hose (3/8 x 50 ft) 4500 psi with M & F JIC
- 247879 - Std. Gun/Wand Assy
- 15T284 - Std. 60 Mesh Inlet Strainer
- air controls
- hose
- gun
- ground wire
Part of the Pneumatic Hydra-Clean product line. Package instruction manual 312585 provides complete setup and operation details. All packages include air controls, hose and gun, and ground wire. Check package identification plate (ID) for 6-digit part number to order replacement parts. Part specifications are referenced to be on page 18. Model 24W473 includes a hose reel assembly not pictured. See Refs. 30, 32, 36, and 47 in the parts listing.
