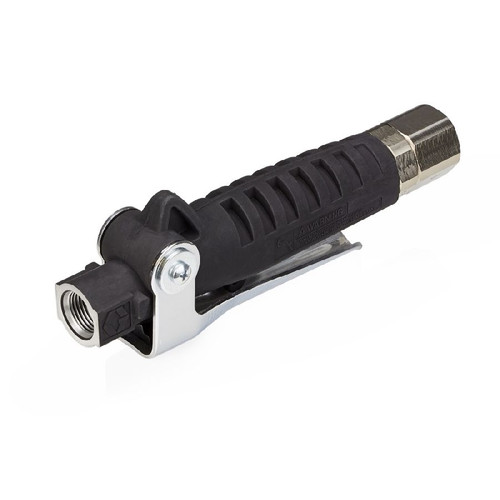

GRACO 247717 SDV15 Series Bare Control Valve - 1/2" Inlet - NPT
For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 15 gpm (56.8 lpm).
Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, In-plant, Lube trucks, and Mining.
- Lock-on/Lock-off trigger allows hands free operation
- Sturdy cast body designed for use in tough environments
- Inlet 1/2 in. NPT with swivel
- Bare valve without nozzle or extension
Compatible Equipment
- SDV15 Dispense Valve Models
- SDV15 Dispense Valves
Related Parts
Reference Manuals
Specifications:
| Compatible Material | Oil, Antifreeze, Gear Lube |
| Dispense Type | Manual |
| Display Type | N/A |
| Extension Type | Bare |
| Inlet Size (in) | 1/2 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (psi) | 1500 |
| Minimum Operating Temperature (°F) | -40 |
| Outlet Size (in) | 3/4 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Recommended Environment | Indoor, Outdoor |
| Trigger Lock | Locking |
| Type | Non-Metered Dispense Valve |
| Valve Type | Non-Metered |
| Weight (lb) | 0.4 |
| Wetted Material | Aluminum, Stainless Steel, CS, Acetal, Nitrile Rubber, TPE |
