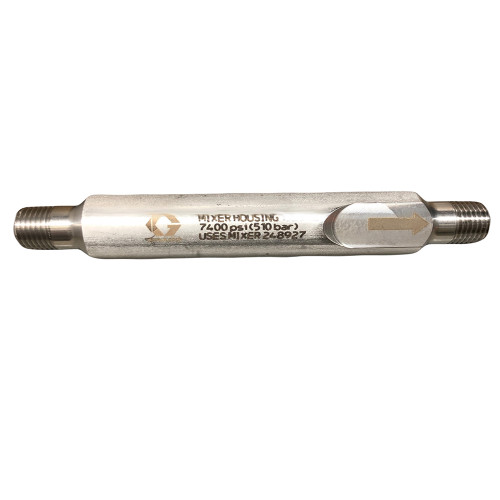

GRACO 262478 - Mixer Packaged Housing Kit, Stainless Steel, 7250 PSI, 3/8 NPT

Static mixer housing designed for high-pressure fluid mixing applications, featuring durable construction for reliable performance in demanding industrial environments

Specifications

• Thread: 3/8 NPT
• Max Working Pressure: 500 bar (50 MPa - 7250 PSI)
• Material: SST (Stainless Steel)
• Pipe Size: 3/8 NPT
• Elements: 12 SST element
• Element Compatibility: holds 1/2 in. 12 element stick from 25 pack 248927

Features

• High-pressure rated up to 500 bar (7250 PSI)
• Stainless steel construction for durability and corrosion resistance
• 12 element SST mixing design for thorough fluid blending
• 3/8 NPT threading for easy installation
• Uses plastic element design for specific applications

Applications

• Static mixing of fluids in high-pressure systems
• Industrial fluid blending applications
• Chemical processing mixing
• High-performance coating applications

Compatible Equipment

• GRACO XM series equipment
• High-pressure spray systems
• integrator hose

Related Parts

• 511352 - Static mixer, 3/8 NPT SST pipe, 12 SST element, 500 bar
• 246078 - Scuff guard, 15.2 m (50 ft) braided polyethylene mesh
• 246456 - Scuff guard, 15.2 m (50 ft) polyethylene bag
• 248927 - Plastic Mix Elements, 1/2" x 12 Element Plastic Sticks- 25 Pack, 1/2" ID

This is a static mixer housing component that uses plastic element design and is part of GRACO's mixing system accessories Typically, two static mixer housings are connected to the static mixer adapter on the integrator hose. These housings use plastic mix elements, available in a package of 25 (W, Part No. 248927). Warning: Never use a swivel union on the mixer inlets as the union will compress the tube and make it possible to remove the mix element. 3/8 NPT(m) holds 1/2 in. 12 element stick from 25 pack 248927

Reference Manuals

• 340146 (Page 7)
• 3J0679EN (Page 14)
• 3J0679ENEU (Page 14)
• 312749 (Page 26)
• 313289 (Page 77)
