GRACO 273334 - Stainless Silver Plus HP Airless Spray Gun, 2 Finger Trigger, 7250 PSI

Silver Plus HP airless spray gun with 2-finger trigger design, rated for 7250 PSI maximum working pressure. Features lightweight rugged design for maximum performance in harsh work environments, with polished body for easy cleaning and exclusive needle design that requires no finger adjustments and is guaranteed for life against breakage.

Specifications

• Max Working Pressure: 7250 PSI
• Material: Stainless steel fluid tube with polished body
• Trigger Type: 2 Finger
• Series: Silver Plus HP
• Weight Reduction: Up to 30% lighter than other guns in its class

Features

• Lightweight, rugged design for maximum performance
• 2-finger trigger design and handle for less fatigue
• Form-fitted handle for less fatigue
• Provides more control of gun while spraying
• Polished body that is easy to clean
• Exclusive needle design - factory-set needle needs no finger adjustments

Applications

• Heavy coatings and joint compounds
• Harsh work environments
• Professional contractor applications
• Maximum flow and superior atomization applications
• High-pressure airless spraying
• Professional coating applications

Compatible Equipment

• All Contractor King models
• All units in contractor fleet

Related Parts

• 286425 - RAC 5 SwitchTip, 425

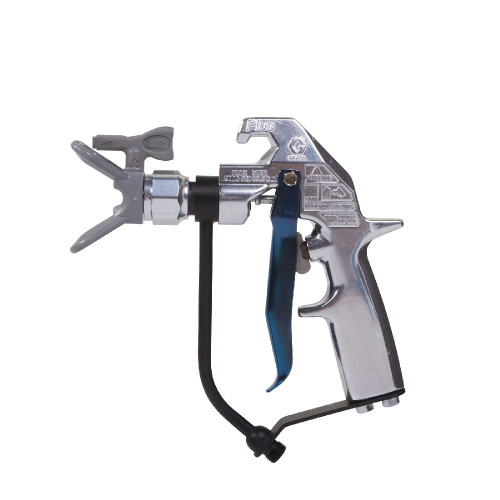

• 273335 - Stainless Silver Plus HP Airless Spray Gun, 4 Finger Trigger, 7250 PSI
• 255461

Part of the Silver Plus HP series which provides all benefits of Silver Plus Gun but rated for higher pressure (7250 PSI). Available in 2 & 4-finger configurations. Part of the Silver Plus and Flex Plus gun family, specifically designed for high-pressure airless spray applications Part of the Silver Plus HP product line. Available with 60:1 and 70:1 contractor and Big 150 models. This appears to be the gun component only, not a complete kit.

Reference Manuals

• 344386 (Page 4)
• 344409 (Page 8)
• 3J0336EN (Page 2)
• 3J0336ENAP-A (Page 2)
• 3J0336ENEU (Page 4)
