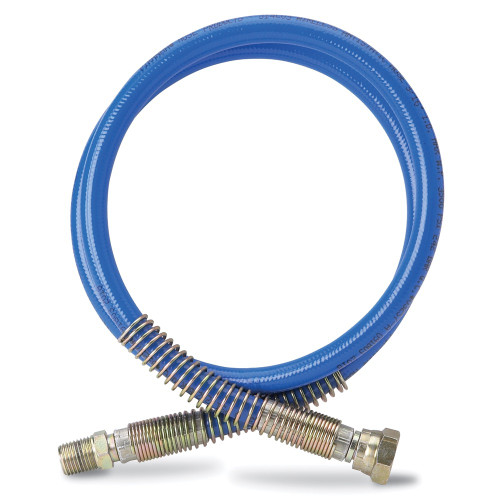

GRACO 277351 - BlueMax II HP Airless Whip Hose, 3/8" x 3 ft, 4000 PSI, BlueMax II
BlueMax II High Pressure Airless Whip Hose designed for maximum flexibility and durability in high-pressure airless spraying applications. Built to handle demanding 4000 PSI working pressure for professional contractors using GMAX II and GH series sprayers.
The BlueMax II HP Whip Hose provides more flexibility and increased operator control at the gun. This BlueMax II Whip Hose has a 3/8 inch diameter and is 3 feet long and rated for up to 4000 PSI.
- Lighter Weight
- Over 10% lighter weight and increased hose flexibility improves under pressure
- Highest Safety Standards
- Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs
- Minimal Hose Coil Memory
- BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling
- Corrosion Resistant
- Plated spring guards are more corrosion resistant
Additional Specifications
- Length: 0.9 m
- Max Working Pressure: 230 bar
- Material: BlueMax II
- Type: MxF (Male x Female connections)
- Dimensions Metric: 9.5 mm x 0.9 m
| Connection Type | Male x Female |
| Hose Diameter (in) | 3/8 |
| Hose Length (ft) | 3 |
| Hose Length (in) | 36 |
| Inside Diameter (in) | 3/8 |
| Material | Nylon |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Type | Coupled Hose |
Features
- BlueMax II construction for durability
- 230 bar pressure rating for high-pressure applications
- Compact 0.9m length for close-quarters work
- 3/8 inch diameter for optimal flow
- Xtreme-Duty high-pressure construction
- 276 bar pressure rating for demanding applications
Applications
- Detail spraying work
- Close-quarters painting
- Professional airless spray applications
- Connection between spray gun and main hose
- Professional airless spray systems
- High-pressure paint spraying
Compatible Equipment
- APX series plaster sprayers
- Professional airless spray systems
- GMAX II series sprayers
- GH 130-300 series sprayers
Related Parts
Listed as accessory for APX all-in-one plaster sprayers, part of the whips category rated for 230 bar pressure systems Part of GRACO's Xtreme-Duty MxF high-pressure flexible hose series, designed for professional airless spraying equipment Part of the BlueMax II High Pressure Hose family, all rated for 4000 PSI WPR. Available in various sizes and lengths to meet different application needs.
