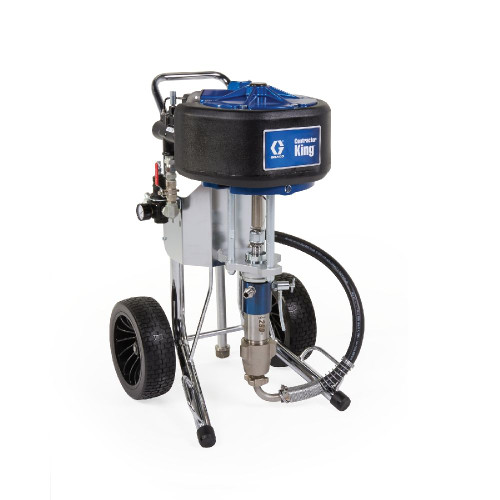

GRACO 279010 - Stainless Bare Contractor King 60:1 Air Powered Airless Sprayer

The Contractor King 60:1 (bare) is part of GRACO's newest line of air-powered sprayers designed for single-person mobility and high performance. This affordable sprayer features advanced anti-icing technology with the XL6500 air motor, proven air valve design for superior finish quality, and a durable compact design for extreme mobility. Perfect addition to every contractor's fleet.

Specifications

• Ratio: 60:1 pump ratio
• Flow Rate: 12.8 l/min (3.4 gpm) maximum flow
• Max Working Pressure: 415 bar (6000 psi) fluid operating pressure
• Material: Stainless steel and chrome components
• Air Pressure: 7 bar (100 psi) maximum air operating pressure
• Air Motor: XL 6500cc
• Lower Output Per Cycle: 220 cc
• Weight: 140 lb
• Pump Type: Endurance
• Piston Rod: Chromex
• Sleeve: SST
• Packing: UHMWPE/Leather
• Max Psi: 4500 psi
• Max Gpm: 4.6 gpm
• Lower: 290cc
• Pump Displacement: 270cc
• Maximum Input Air Pressure: 100 psi (7 bar)
• Max Flow Rate At 60 Cycles: 3.4 gpm (12.9 lpm)
• Compressor: User-supplied air compressor required. Minimum compressor rating of 60 cfm at 100 psi per 1 gpm sprayed
• Gun: Silver Plus HP
• Tip: XHD519
• Hoses: Xtreme Duty 7250 psi, 3/8 in hose, 1/4 in whip

Features

• Anti-icing technology
• Portable, durable design
• Endurance QuickChange pump technology
• Ships complete and ready to spray
• High pressure capability up to 6000 psi
• Chromex piston rod for durability

Applications

• Professional contractor spraying
• Heavy-duty coating applications
• Industrial painting projects
• Contractor applications requiring mobility and high performance
• Single-person spraying operations
• Jobs requiring superior finish quality

Compatible Equipment

• XHD417 tips
• XHD519 tips
• XHD guards
• Silver Plus guns
• Various hose and accessory options
• Air compressors with minimum 60 cfm at 100 psi per 1 gpm sprayed

Related Parts

• 279005 - 45:1 Bare unit
• 279006 - 45:1 Complete (2-F gun)
• 279011 - 60:1 Complete (2-F gun)
• 279013 - 70:1 Bare unit
• 279014 - 70:1 Complete (2-F gun)
• 279026 - 45:1 Complete (4-F gun)
• 279028 - 60:1 Complete (4-F gun)
• 279030 - 70:1 Complete (4-F gun)
• 279005 - Contractor King 45:1 (bare)
• 279006 - Contractor King 45:1 (complete)

Kit Contents

• 279010 - Contractor King 60:1 (bare)
• 279011 - Contractor King 60:1 Connected

This is the bare unit configuration of the Contractor King 60:1 model. Complete units with guns are also available. Manual 3A9121 covers all models in this series. This is the bare unit model - complete versions include Silver Plus guns and accessories. Part of the Contractor King family with models available in 4500 psi, 6000 psi and 7250 psi ratings. This is listed as 'bare' unit, suggesting it may be sold without certain accessories. The 279011 appears to be the 'Connected' version of the same unit.

Reference Manuals

• 3J0336EN (Page 2)
• 3J0336ENAP-A (Page 2)
• 3J0336ENEU (Page 4)
• 3J0416EN (Page 7)
• 3J0416ENAP-A (Page 5)
