GRACO 279036 - Fast-Ball 100 Oil Pump, 1:1, Cut to Length Pvc Downtube

GRACO Fast-Ball 100 pneumatic pump with cut-to-length PVC downtube, designed for enhanced quality, durability and reliability. Features in-line design with fewer parts for reduced wear, double-acting pump for reliable fluid flow, and differential air motor for smooth operation. Backed by GRACO's 5-year warranty.

Specifications

• Ratio: 1:1
• Flow Rate: 12.5 gpm (47.3 lpm) maximum, 100 cpm maximum continuous cycle rate
• Length: Cut-to-Length
• Max Working Pressure: 150 psi (10.3 bar) working pressure, 40-150 psi (2.8-10.3 bar) air operating range

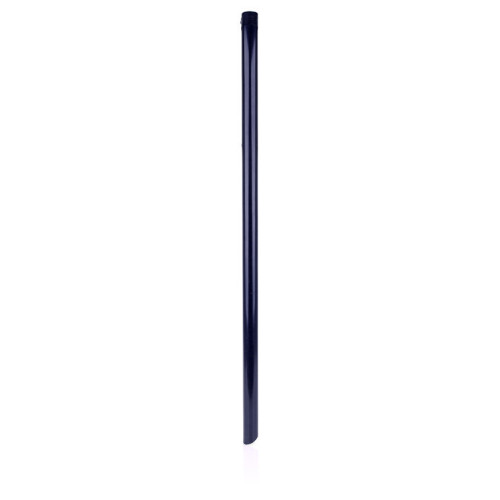

• Material: PVC downtube, compatible with oil, gear lube, ATF
• Air Inlet Size: 1/4 in NPT
• Fluid Inlet Size: 1 in NPT
• Fluid Outlet Size: 3/4 in NPT
• Sound Level: 78 dB(A)
• Weight: 2.9-4.4 kg (6.3-9.8 lbs)
• Power Type: Pneumatic

Features

• In-line design with fewer parts for less pump wear
• Double-acting pump provides reliable fluid flow
• Differential air motor ensures smooth pump operation
• 5-year warranty for quality guarantee and peace of mind
• Simple, easy-to-install design for efficient serviceability
• Minimizes downtime and keeps operations running

Applications

• Fluid Transfer
• Specialty Fluid Dispenses
• Point of Use
• Mobile Fluid Carts

Compatible Equipment

• Oil
• Gear Lube
• ATF
• Fastball 100
• Models 279036 - Fast-Ball 100 Oil Pump, 1:1, Cut to Length Pvc Downtube, 279037 - Steel Tube Universal Pump Fast-Ball 100, 55 Gallon Drum, 2009316, 2017308

Related Parts

• 279035 - Universal Length Pump
• 279037 - 200 Liter (55 Gallon) Drum Length Pump
• 279035 - Fast-Ball 100 Universal Length Pump
• 279037 - Steel Tube Universal Pump Fast-Ball 100, 55 Gallon Drum

Cut-to-Length PVC Downtube version allows for custom length requirements. Part of the Fast-Ball 100 pump family designed for enhanced quality, durability and reliability. Designed for Non-abrasive Oils and Lubrications. Part of the Fastball 100 pump series. 279036 is identified as a drum pump model. It requires a fluid drain valve (GRACO part No. 210658 is available for models 279035, 279036, and 279037). This model is mentioned in the context of requiring certain components like the drum pump and fluid drain valve for proper installation.

Reference Manuals

• 353407 (Page 1)
• 3A9292 (Page 3)
