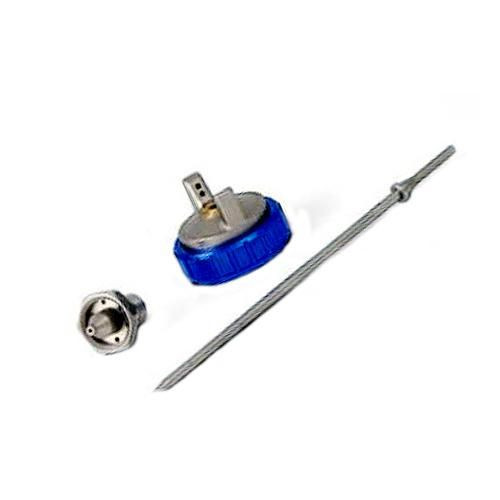

GRACO 289290 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .055" Nozzle, 29 PSI

Needle and Nozzle Air Cap Kit designed for GRACO Finex Gravity Feed Mini-HVLP spray guns with 0.055 inch (1.4mm) nozzle size. This precision-engineered kit provides optimal atomization and spray pattern control for fine finishing applications requiring high-quality surface finishes with reduced overspray.

Specifications

• Max Working Pressure: 29 PSI (2 bar, 0.2 MPa) maximum HVLP inbound air pressure
• Nozzle Size: 0.055 inch (1.4mm)
• Gun Type: Gravity Feed Mini-HVLP
• Air Consumption: 9.5 SCFM at 43 PSI (3.0 bar, 0.3 MPa)
• Needle Nozzle Size: 0.055 in. (1.4 mm)

Features

• 0.055 inch (1.4mm) precision nozzle for fine finishing
• HVLP technology for reduced overspray and improved transfer efficiency
• Gravity feed design for consistent material flow
• Complete needle, nozzle, and air cap kit for optimal performance

Applications

• Fine finishing applications
• High-quality surface coating
• Precision spraying with reduced overspray
• HVLP compliant spray operations

Compatible Equipment

• GRACO Finex Gravity Feed Mini-HVLP Spray Guns
• Gravity Feed Mini-HVLP

Related Parts

• 289286 - Needle, Nozzle Air Cap Kit (0.024/0.6)
• 289287 - Needle, Nozzle Air Cap Kit (0.031/0.8)
• 289288 - Needle, Nozzle Air Cap Kit (0.039/1.0)
• 289289 - Needle, Nozzle Air Cap Kit (0.047/1.2)
• 289890 - Needle Packing Kit
• 289323 - Gravity Cup Kit (125 cc Plastic)
• 25R580 - PPS Adapter
• 24F059 - Trigger Repair Kit
• 289286 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .024" Nozzle
• 289287 - Needle, Nozzle, Air Cap Kit for Finex Gravity Feed Mini-HVLP Guns w/ .031" Nozzle

Kit Contents

• Needle, Nozzle, and Air Cap components (specific part numbers not detailed in this document)
• parts 1, 2, and 10
• piece 1
• piece 2
• piece 10

Part of the GRACO Finex Mini-HVLP gun system. Uses needle packing kit 289890, can work with 125cc plastic gravity cup kit 289323, and is compatible with PPS adapter 25R580. This is a needle, nozzle, and air cap kit for 0.055 inch (1.4mm) nozzle size guns. Kit includes parts 1, 2, and 10 as indicated in the table header. This is a needle, nozzle, and air cap kit for gravity-fed Mini-HVLP spray guns with 0.055 (1.4mm) tip size. Kit includes parts 1, 2, and 10 according to the manual.

Reference Manuals

• 339461 (Page 2)
• 312388 (Page 10)
