GRACO 289563 - HVLP Pressure Verification Kit, General Metal, General Metal, 10 PSI

HVLP Air Pressure Verification Kit designed for checking air cap atomizing and pattern air pressure at various supply air pressures. This general metal version provides reliable pressure verification to ensure HVLP compliance and optimal spray performance. Not intended for actual spraying - this is a testing and verification tool.

Specifications

• Max Working Pressure: 0.7 bar (10 kPa, 10 PSI) maximum for HVLP compliance
• Material: General Metal
• Orifice Size: 0.5-1.8 mm
• Part Type: Orifice
• Hvlp Compliance: Atomizing and pattern pressure air pressures must not exceed 0.7 bar (70 kPa, 10 PSI)
• Size Range Mm: 0.5 - 1.8 mm
• Size Range Inches: 0.020-0.070 in.
• Verification Type: HVLP

Features

• General Metal construction for durability
• Precision orifice sizing for accurate pressure verification
• Part of comprehensive air pressure verification system
• Verifies HVLP compliance
• Checks air cap atomizing pressure
• Measures pattern air pressure

Applications

• HVLP spray gun setup and calibration
• Aircap atomizing air pressure verification
• Spray equipment maintenance and troubleshooting
• HVLP compliance verification
• Spray gun pressure testing
• Quality control testing

Compatible Equipment

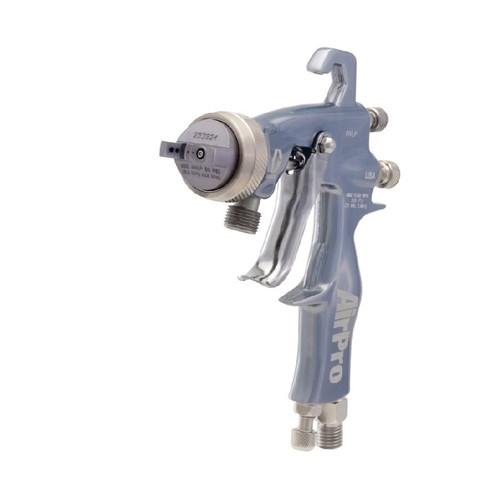

• HVLP spray guns
• Air pressure verification systems
• Air spray systems requiring pressure verification

Related Parts

• 289566 - Hvlp Pressure Verification Kit, 0.7 Bar (70 Kpa
• 289569 - Hvlp High Wear Air Pressure Verification Kit, .070-.096" Orifice
• 289589 - HVLP Verification Kit
• 289568 - HVLP High Wear 1.5 mm (0.059 in.)
• 289569 - HVLP High Wear 1.8 mm (0.070 in.)

This is an individual component of the Air Pressure Verification Kit system. Used specifically for checking aircap atomizing air pressure, not to be used for actual spray applications. Must not exceed 70 PSI operating pressure. Installation instructions: Install the kit air cap on the gun, turn on the air to the gun, then trigger the gun and read the air pressure on the gauge. This is specifically the General Metal version of the HVLP Pressure Verification Kit. This is a test gauge for HVLP verification in the general metal size range of 0.5-1.8mm

Reference Manuals

• 339377 (Page 11)
• 344790 (Page 4)
• 312414 (Page 19)
