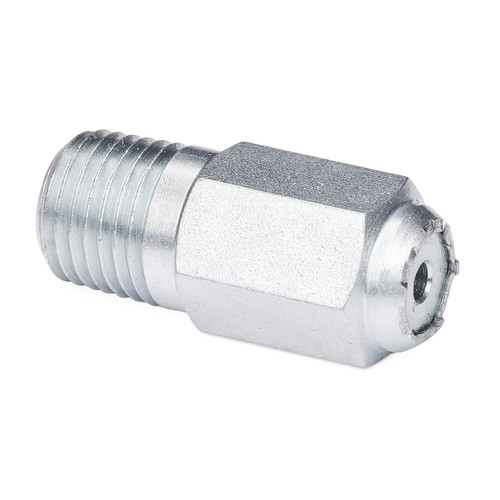

GRACO 563228 - Replacement Rupture Indicator, 1/8-27 NPT(F), 2800 PSI

Replacement rupture indicator disc designed for MH divider valve applications where lube system pressures exceed 2,500 PSI. When high pressure from lube line blockage causes the disc to rupture, lubricant forces an indicator pin to protrude, locating the blockage and causing the high pressure to back up through the system and trip a switch to shut the system off, providing critical pump protection.

Specifications

• Thread: 1/8-27 NPTF
• Max Working Pressure: 193 bar
• Disc Color: Green
• Replacement Disc Diameter: 3/8 in.
• Replacement Disc: 557422

Features

• Memory function retains pressure event indication
• Compatible with MS, MH and MXP series equipment
• 193 bar pressure rating
• High pressure rupture detection at 2,800 PSI ± 20%
• Visual indicator pin protrusion when activated
• Automatic system shutdown capability when connected to switch

Applications

• Pressure monitoring for spray equipment
• System diagnostics and troubleshooting
• Safety monitoring applications
• MH divider valve applications
• Lube system blockage detection
• High pressure lubrication systems exceeding 2,500 PSI

Compatible Equipment

• MS series equipment
• MH series equipment
• MXP series equipment
• MH divider valves
• High pressure lubrication systems
• MH Divider Valves where lube system pressures exceed 2500 PSI (17 MPa, 172 bar)

Related Parts

• 563220 - 255 bar
• 564355 - 317 bar
• 563223 - 379 bar
• 563225 - 441 bar
• 557423 - 255 bar Replacement Disc - Yellow
• 557424 - 317 bar Replacement Disc - Red
• 557425 - 379 bar Replacement Disc - Orange
• 557427 - 441 bar Replacement Disc - Pink
• 563220 (3,700 ± 20% psi)
• 564355 (4,600 ± 20% psi)

Part of a family of rupture indicators with memory available in different pressure ratings. Replacement discs are available separately in color-coded options. This is a complete assembly with 1/8-27 NPTF female threading. When fault is corrected, the disc must be replaced and the pin reset manually. High pressure from the lube line blockage causes a disc to rupture. The lubricant then forces an indicator pin to extend, showing the blockage. The high pressure backs up through the system and trips a switch that turns the system off. When the fault is corrected, the disc must be replaced and the pin reset manually.

Reference Manuals

• 339427 (Page 23)
• L15401EN-C (Page 3)
• 312497 (Page 39)
