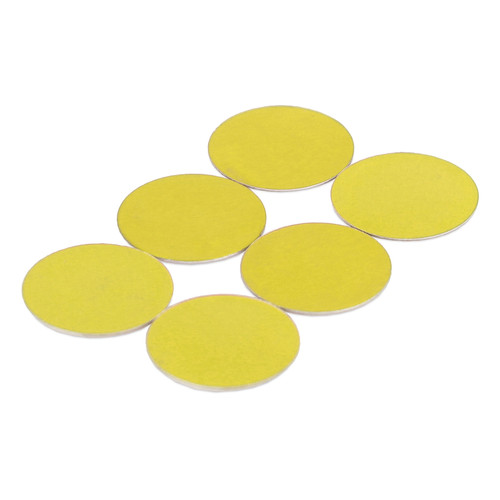

GRACO 563954 - Blowout Disc Kit - (25) Yellow, 1450 PSI, 3/8", 3/8" NPTF

Blowout disc package for rupture-to-atmosphere indicators that provide pump protection and visual indication of excessive system pressure. These pressure discs rupture at a predetermined pressure setting, venting lubricant to the atmosphere and relieving high pressure in MH divider valve applications.

Specifications

• Thread: 3/8 in NPTF
• Max Working Pressure: 1450 PSI
• Disc Color: Yellow
• /li>
• Tolerance: ±20%
• Diameter: 3/8 in.

Features

• Provides pump protection against excessive pressure
• Visual indication of system pressure issues
• Predetermined pressure rupture setting
• Vents lubricant to atmosphere when activated
• Relieves high pressure in system
• Color-coded for easy pressure identification

Applications

• MH divider valve applications
• High pressure lubrication systems
• Pump protection systems
• Pressure relief applications

Compatible Equipment

• Rupture-to-atmosphere indicators
• 3/8 in NPTF fittings
• High pressure lubrication systems
• GRACO pumps with Rupture-to-Atmosphere Indicators

Related Parts

• 563952 (660-900-050)
• 563955 (660-900-080)
• 563956 (660-900-090)
• 563958 (660-900-110)
• 563959 (660-900-120)
• 563960 (660-900-130)
• 563961 (660-900-140)
• 563955 - Blowout Disc Kit - (25) Red, 1750 PSI, 3/8", 3/8" Diameter
• 563956 - Blowout Disc Kit - (25) Orange, 2050 PSI, 3/8", 3/8" Diameter

Kit Contents

• 25 yellow blowout discs rated for 1450 PSI

Part of the rupture-to-atmosphere indicator system. Disc must be replaced after activation and pin reset manually when fault is corrected. Standard blowout disc for Rupture-to-Atmosphere Indicators on GRACO pumps. When pressure reaches predetermined setting, the pressure disc ruptures, venting lubricant into the atmosphere and relieving pressure. All pressures have a tolerance of +500 psi (3.4 MPa, 34.5 bar).

Reference Manuals

• L15401EN-C (Page 3)
• 312497 (Page 40) Trabon Divider Valves .
