GRACO 647016 - Husky 1050 Air-Operated Double Diaphragm Transfer Pump – 1" AL/TPE for Water, Antifreeze & Fuel Transfer, 100 PSI, 1-" (25.4 mm)

PUMP, Husky 1050 AODD (Models 244679 and 244680.) See Related Manuals, page 1.

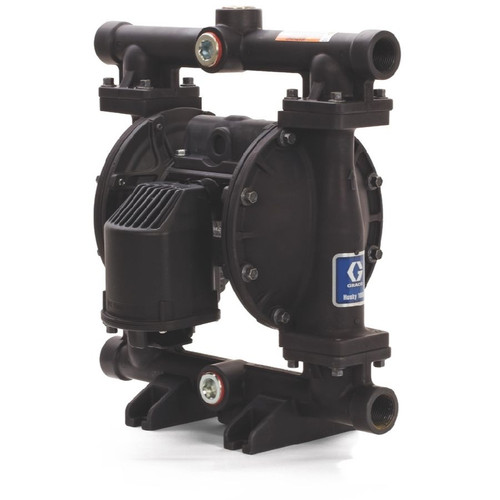

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
• Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
• One-Piece Center Section - Eliminates air leaks for more efficient operation
• Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
• Multiple Ports - Increased number of ports for installation flexibility
• Optional Features - DataTrak™ (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
• Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
• 30% more efficient than the market leader
• 20% increase in fluid flow compared to the Husky 1040

Additional Specifications

• Thread: 1-inch (25.4 mm)
• Max Working Pressure: 100 PSI (0.7 MPa, 7.0 bar) Maximum Fluid Working Pressure
• Pump Type: Husky 1050 AODD
• Size: 1-inch (25.4 mm)
• Model: 1050
• Max Air Input Pressure: 100 PSI (0.7 MPa, 7.0 bar)
• Application: general fuel transfer applications

Compatible Equipment

• Model 24E166, Series A
• Wall-mount 1050 diaphragm pump system
• Models 244679
• Models 244680 - Husky 1050 – Single Inlet Bulk Antifreeze & Windshield Solvent Transfer Package, Husky 1050A UL-Listed Diaphragm Pumps

Related Parts

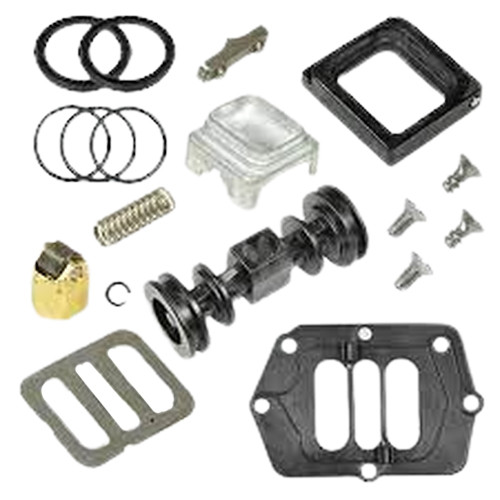

• 240684 - KIT, installation, air
• 243669 - PUMP, Husky 515 AODD (Model 244681)
• 241906 - PUMP, Husky 716 AODD (Model 244682)
• 647731 - Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation, Oil Transfer, BN/AC/TPE

Reference manual 313597 for additional information. This is part of a wall-mount 1050 diaphragm pump system without used-oil receiver. Reference to Related Manuals page 1 for additional specifications. This is the main pump unit for the Husky 1050 AODD system. Model 647016 is listed alongside model 647731 in the Evacuation and Transfer Pumps category. Both models share the same pressure specifications and are designed for general fuel transfer applications.

Reference Manuals

• 308719 (Page 7)
• 309353 (Page 2)
• 313597 (Page 1)
