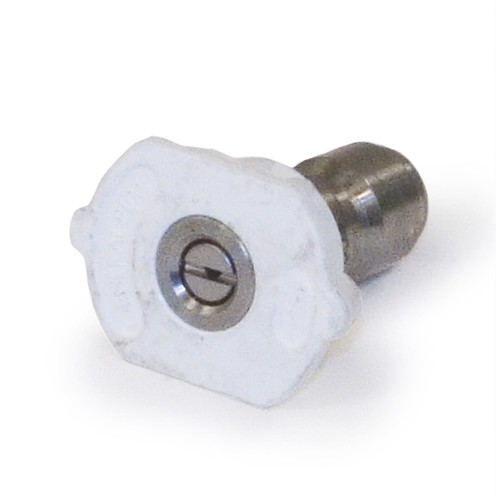

GRACO 805542 - Washer Spray Tip, 40035, 0.020"

40 degree white spray tip designed for wide spray washing applications and rinsing large areas. Part of GRACO's rotating and oscillating tip system that increases cleaning power and decreases cleaning time with 25° coverage and impact with heavy-duty components for long life and reliability.

Maximize your cleaning power by selecting the tip that best matches the maximum pressure and flow of your pressure washer. For lower pressure spraying, choose a larger size tip to maximize your flow and cleaning power.

Tips include filter with quick connect and offer heavy-duty components for long life and reliability. Can be used on sidewalks, driveways, track vehicles, muddy areas, old peeling paints and concrete surfaces.

• 25 degree Flushing Tip

  • Most common nozzle for general cleaning.
  • Cleaning dirt from siding, sidewalks, outdoor furniture, etc.

Additional Specifications

• Inside Diameter: 0.020 in (0.5 mm)
• Spray Angle: 15°
• Orifice Size: 3.5
• Orifice Diameter: 0.020 in (0.5 mm)

Color	White
Connection Size (in)	0.25
Connection Type	Quick Disconnect
For Use With	AquaMax, G-Force, G-Force II, Hydra-Clean
Material	Stainless Steel
Maximum Working Pressure (psi)	5000
Model	G-Force II
Nominal Size	40035
Orifice Diameter (in)	0.035
Series	Washer Spray Tip
Tip Angle (°)	40
Tip Motion	Oscillating, Rotating
Type	Pressure Washer Sprayer Tip

Features

• 40-degree spray pattern for optimal cleaning coverage
• Precision orifice size of 3.5 for controlled flow
• Professional-grade construction for durability
• Quick-change design for efficient tip swapping
• Precision 0.020 inch orifice diameter for controlled flow
• 15° spray angle for narrow, focused spray pattern

Applications

• Pressure washing and cleaning applications
• Surface preparation
• General cleaning tasks requiring wide spray coverage
• Detail spray work
• Precision coating applications
• Fine finishing work

Compatible Equipment

• G-FORCE II pressure washers
• Professional pressure washing equipment
• GRACO spray guns and equipment with standard tip connections

Related Parts

• 805535 - Washer Spray Tip, 0003
• 805536 - Washer Spray Tip, 1503, 3.0 Orifice, Up to 5000 PSI
• 805537 - Washer Spray Tip, 2503
• 805538 - Washer Spray Tip, 4003
• 805539 - Washer Spray Tip, 00035
• 805540 - Washer Spray Tip, 15035

Part of a complete tip system with multiple orifice sizes (2.7 to 5.5) and spray angles (0°, 15°, 25°, 40°) available. Also available in sets of 4 tips for 0°-15°-25°-40° combinations. Part of GRACO's comprehensive spray tip lineup offering various orifice sizes and spray angles for different application requirements Part of the rotating tip system for G-Force II pressure washers. Tip selection should match maximum pressure and flow of pressure washer for optimal performance.

Reference Manuals

• 320582 (Page 4)
• 338026 (Page 4)
• 338781 (Page 8)
• 344379 (Page 8)
• 308514 (Page 2)
