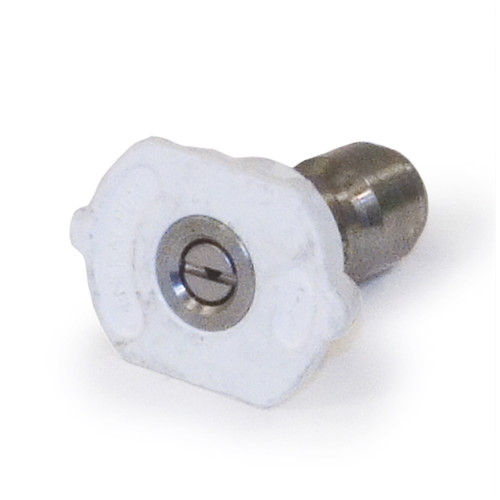

GRACO 805549 - Washer Spray Tip, 25045

GRACO rotating pressure washer tip designed for 25° spray angle at 4.5 orifice size, engineered for professional cleaning applications requiring medium spray coverage and effective cleaning power

Maximize your cleaning power by selecting the tip that best matches the maximum pressure and flow of your pressure washer. For lower pressure spraying, choose a larger size tip to maximize your flow and cleaning power.

Tips include filter with quick connect and offer heavy-duty components for long life and reliability. Can be used on sidewalks, driveways, track vehicles, muddy areas, old peeling paints and concrete surfaces.

• 15 degree Chiseling Tip

  • Works like a scraper when used at a 40° angle.
  • Stripping paint; removing grease, mildew and stains.

Additional Specifications

• Max Working Pressure: 275 bar
• Orifice Size: 4.5
• Orifice Diameter: 0.045 in (1.1 mm)

Color	Green
Connection Size (in)	0.25
Connection Type	Quick Disconnect
For Use With	AquaMax, G-Force, G-Force II, Hydra-Clean
Material	Stainless Steel
Maximum Working Pressure (psi)	5000
Model	G-Force II
Nominal Size	25045
Orifice Diameter (in)	0.045
Series	Washer Spray Tip
Tip Angle (°)	25
Tip Motion	Oscillating, Rotating
Type	Pressure Washer Sprayer Tip

Features

• Rotating pressure washer tip design
• 25° spray angle for medium coverage
• 4.5 orifice size for balanced flow
• Compatible with G-FORCE II pressure washers
• 0.045 inch orifice diameter for precise flow control
• 25-degree spray angle for narrow fan pattern

Applications

• General pressure washing
• Surface cleaning with medium spray pattern
• Commercial and industrial cleaning applications
• Detail spraying applications
• Precision coating work
• Applications requiring controlled spray patterns

Compatible Equipment

• G-FORCE II 3325 HA-DD
• G-FORCE II 3230 HA-DD
• G-FORCE II 4040 HG-DD
• G-FORCE II 4040 HC-DD
• G-FORCE II 4040 HG-BD
• G-FORCE II 4040 HC-BD

Related Parts

• 805535 - Washer Spray Tip, 0003
• 805536 - Washer Spray Tip, 1503, 3.0 Orifice, Up to 5000 PSI
• 805537 - Washer Spray Tip, 2503
• 805538 - Washer Spray Tip, 4003
• 805539 - Washer Spray Tip, 00035
• 805540 - Washer Spray Tip, 15035

Part of the rotating pressure washer tip family available in 0°, 15°, 25°, and 40° spray angles with various orifice sizes Part of GRACO's orifice spray tip family offering various diameter and angle combinations for different spraying needs Part of the rotating and oscillating tip family for G-Force II pressure washers. 25 degree angle is the most common nozzle for general cleaning applications.

Reference Manuals

• 320582 (Page 4)
• 338026 (Page 4)
• 338781 (Page 8)
• 344379 (Page 8)
• 306817 (Page 11)
