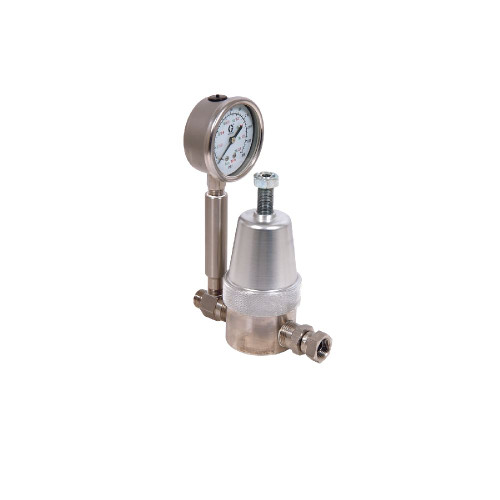

GRACO 237503 - Back Pressure Regulator, Bare, Low Pressure, 180 Max psi, SST, Manual, 3/8 NPT(F) inlet x 1/2 NPT(F) outlet
Low pressure fluid back pressure regulator designed for catalyst and waterborne material applications. Features stainless steel wetted materials for chemical compatibility, tungsten and carbide components for durability, and compact lightweight design ideal for small circulation systems.
Features:
Control upstream fluid pressure with Graco back pressure regulators. Our back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand. This allows operators to trigger guns, valves, and other flow controls without changing the system pressure.
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Tungsten and carbide materials ensure low wear and long life
- Compact and lightweight design saves space and reduces payload for small circulation systems
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Air operated model available for automated control, Conversion kit (237448)
Additional Specifications
- Thread: 3/8 NPT(F) inlet x 1/2 NPT(F) outlet
- Material: Stainless Steel (SS)
- Type: Spring
- Gauge Included: No
- Regulated Pressure Range: 0-12 bar (0-180 PSI)
- Wetted Parts: SST
- Includes Gauge: No
| Compatible Material | Catalyst, Waterborne |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Type | NPT |
| Includes | Gauge, Tube, Inlet Adapter and Outlet Swivel Union |
| Inlet Size (in) | 3/8 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 4.3 |
| Maximum Regulated Pressure (psi) | 180 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Regulated Pressure (psi) | 5 |
| Outlet Size (in) | 3/8 |
| Outlet Thread Type | NPT |
| Type | Back Pressure Regulator |
| Wetted Material | Stainless Steel, Tungsten Carbide With Nickel Binder, Acetal, PTFE |
Features
- Spring-loaded pressure regulation
- Stainless steel construction for corrosion resistance
- Wide pressure range (5-180 PSI)
- High viscosity capability up to 1000 CPS
- Compact low pressure design
- 1/4 F gauge port for pressure monitoring
Applications
- Paint spraying systems
- Coating applications
- Low pressure fluid delivery
- Pressure regulation in finishing equipment
- Back pressure regulation in fluid systems
- Low to medium pressure applications
Related Parts
- 205122 - Back Pressure Regulator, Low Pressure Mini, 180 Max psi, CS, Manual, 3/8 (m) x 3/8 (F), w/ Gauge
- 236770 - Stainless Back Pressure Regulator, 3/8 F, 1/4 F Gauge, 180 PSI Maximum
- 206019 - Low Pressure Fluid Back Pressure Regulator, 180 PSI max pressure, AL wetted parts, manual, 1"(F) inlet, 1"(F) outlet w/ gauge
Part of GRACO's low pressure back pressure regulator family. Gauge sold separately. Refer to instruction manual 308401 for complete operating instructions. This is a bare regulator without gauge included. Part of the Back Pressure Regulator (0-25 PSI) (8-17 bar) family. Other models in same pressure range include 236770 and 206019. Part of the Low Pressure Mini Fluid Back Pressure Regulator (BPR) family. Air operated model available for automated control with Conversion kit (237448). Instruction manual 308401.
