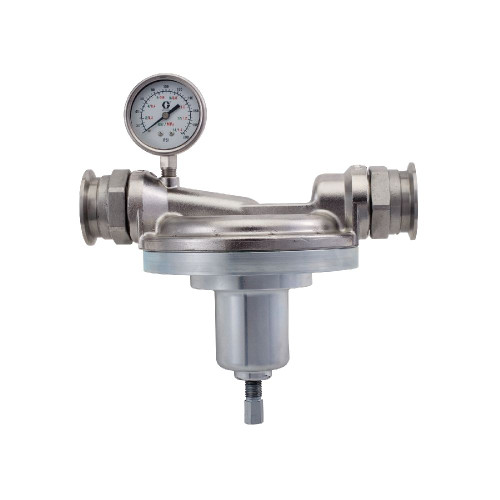

GRACO 223824 - Corrosion Resistant Fluid Back Pressure Regulator, low shear mechanical (20 gpm, 300 PSI max fluid pressure, 2" sanitary), Stainless Steel
High-pressure back pressure regulator designed for demanding fluid control applications, featuring stainless steel and acetal construction with PTFE sealing for chemical compatibility. Manual operation provides precise pressure regulation from 0.3-12 PSI (5-180) with maximum delivery capacity of 75 GPM at 300 PSI maximum fluid pressure.
Features:
Control upstream fluid pressure with Graco back pressure regulators. Our back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand. This allows operators to trigger guns, valves, and other flow controls without changing the system pressure.
- Stainless steel membrane diaphragm is highly wear resistant while maintaining accurate responsiveness
- Low Shear diaphragm valve has minimal restriction to reduce material degradation and color matching issues, especially with metallic paint
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Large fluid passages to accommodate high volume flow rates
Additional Specifications
- Flow Rate: 6.0 gpm max
- Max Working Pressure: 180 PSI max
- Material: SS (Stainless Steel)
- Gauge: 1/3 np(F)
- Psi Range: 5-200
- Wetted Parts: SST, Acetal and PTFE
- Type: Manual
- Inlet: 2 in. sanitary
- Outlet: 2 in. sanitary
- Gauge Included: No
- Connection Type: sanitary
- Regulator Type: low shear mechanical
- Regulated Pressure: 0.3-12 (5-180)
| Compatible Material | Catalyst, Waterborne |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Type | NPT |
| Includes | Gauge |
| Inlet Size (in) | 2 |
| Maximum Flow Rate (GPM) | 4 |
| Maximum Regulated Pressure (psi) | 200 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Regulated Pressure (psi) | 15 |
| Outlet Size (in) | 2 |
| Type | Back Pressure Regulator |
| Wetted Material | Stainless Steel, Acetal, PTFE |
Features
- Low shear design for gentle material handling
- Stainless steel wetted parts for corrosion resistance
- Spring-operated mechanical control
- Sanitary connections for hygienic applications
- Handles viscous materials up to 1000 CPS
- Low shear mechanical design for gentle fluid handling
Applications
- Low shear fluid applications
- Mastics handling
- Viscous material processing
- Sanitary/hygienic processing
- Food and beverage applications
- Food and beverage processing
Compatible Equipment
- Systems requiring 2-inch sanitary connections
- Low shear fluid systems
Related Parts
- 224486 - Corrosion Resistant Fluid Back Pressure Regulator, 300 Max psi, SST, Acetal & PTFE Wetted Parts, 1-1/4 (F) x 1-1/4 (F), w/ Gauge
- 223824 - Corrosion Resistant Fluid Back Pressure Regulator, low shear mechanical (20 gpm, 300 PSI max fluid pressure, 2" sanitary)
- 208997 - Back Pressure Regulator, Low Pressure Corrosion Resistant, 200 Max psi, SST, Manual, 1-1/4 (F) x 1-1/4 (F), w/ Gauge
- 236770 - Stainless Back Pressure Regulator, 3/8 F, 1/4 F Gauge, 180 PSI Maximum
- 916154 - Back Pressure Regulator, Low Pressure Corrosion Resistant, 180 Max psi, SST & Carbide, Manual, 1-1/4 (F) x 1-1/4 (F), w/ Gauge
- 288117 - Pneumatic Fluid Back Pressure Regulator, 20 GPM, 300 PSI, 1-1/4" NPT Inlet/Outlet, w/ gauge
- 288311 - Pneumatic Back Pressure Regulator, 1-1/2" NPT, 300 PSI Max Fluid Pressure
- 288262 - Pneumatic Back Pressure Regulator, 2" Tri-Clamp, 300 PSI Max Fluid Pressure
- 15J498
- 24E709
Instruction manual 308415. Designed specifically for low shear and mastics applications where gentle handling of materials is critical. Part of the Back Pressure Regulators (BPR) product family, specifically designed for sanitary applications where low shear is critical Part of GRACO's back pressure regulator family designed for high-pressure applications with sanitary connections. Includes gauge (1/3 np(F)) for pressure monitoring.
