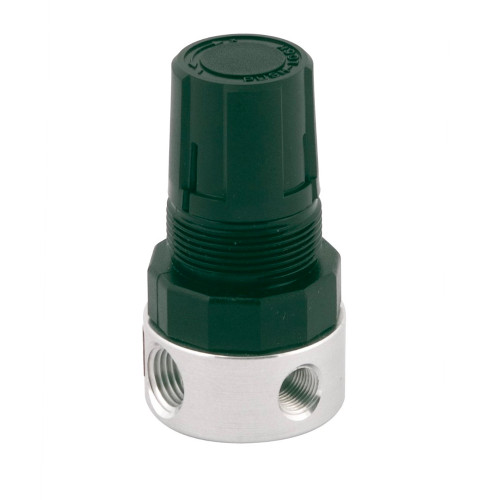

GRACO 110318 - Air Regulator, 1/4"(F) Inlet/Outlet, 0-180 PSI, Zinc Plated
Air pressure regulator designed for accurate adjustment of air pressure for process control with multiple outlets for connecting equipment, gauges, or ball valves. Provides precise pressure regulation from 0-180 PSI in a compact zinc-plated design.
Additional Specifications
- Flow Rate: 0.4 CFM at m³/min (100 PSI)
- Max Working Pressure: 0-180 PSI (0-12.4 bar, 0-1.24 MPa)
- Material: Zinc-plated
- Max Cfm: 0.4 (15)
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| For Use With | Mini-Flo, Standard, Fast-Ball |
| Gauge Port Size (in) | 1/8 |
| Gauge Port Type | NPT |
| Handle Type | Knob |
| Includes | Regulator Only |
| Maximum Air Flow Rate (SCFM) | 15 |
| Maximum Air Inlet Pressure (MPa) | 2.1 |
| Maximum Air Inlet Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Regulated Pressure (MPa) | 1.1 |
| Maximum Regulated Pressure (psi) | 180 |
| Minimum Operating Temperature (°F) | 40 |
| Minimum Regulated Pressure (psi) | 0 |
| Outlet Size (in) | 1/4 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | NPT |
| Type | Air Regulator |
Features
- Multiple outlets for connecting equipment, gauges, or ball valves
- Accurate adjustment of air pressure for process control
- Compact design with 1/4" female inlet/outlet
- 1/8" female gauge ports
- Zinc-plated construction for durability
- Protects system components
Applications
- Air pressure regulation in finishing systems
- Process control applications
- Connecting to equipment and gauges
- Ball valve pressure control
- Pneumatic lubrication systems
- Air line pressure regulation
Compatible Equipment
- LubePro pump systems
- Industrial pneumatic equipment
- Part No. 253017, Series A
- Part No. 207279, Series L
Related Parts
- 104266 - Zinc Plated Air Regulator, 1/2"(F) Inlet/Outlet, 0-250 PSI, 1/2 NPT(Fbe)
- 104815 - Zinc 1/8" NPT 0-125 PSI Mini Air Regulator, 1/8 NPT, 1/8(F) Gauge
- 110147 - Zinc Air Pressure Regulator w/ Gauge, 1/4" NPT, 0-125 PSI (0-8.6 Bar)
- 110146 - 20 micron air filter
- 110148 - lubricator
- 110319 - pressure gauge
- 110319 - Air Press Gauge, 1/8" NPT, 1/4" NPT, 300 PSI Wpr Maximum
Part of GRACO's Air Preparation and Controls finishing accessories line. Available as bare part number with optional assembly part number 110147 for 1/4(F) configuration. This regulator is available as part of kit 110149 which includes air filter, regulator, lubricator and pressure gauge for complete air preparation Reference number 82 in parts diagram. See Manual 308167 for parts. Related to part 110319 which is listed as GAUGE, air pressure.
