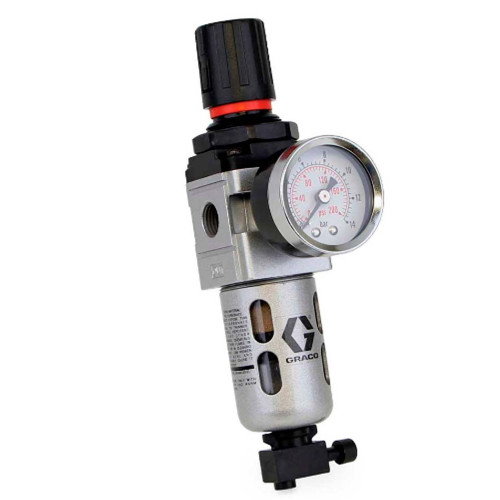

GRACO 133217 - SST 3/8" Filter Regulator w/ Automatic Drain, 140 PSI (0.97 MPa, 9.65 Bar)
3/8 inch Filter Regulator with automatic drain designed for intermediate flow applications. Provides clean, regulated compressed air for pneumatic equipment with convenient auto drain feature to remove moisture buildup. Built for reliable performance in demanding industrial environments including mining, mobile service, and heavy-duty applications.
Specifications
- Flow Rate: 77 cfm (2,200 lpm)
- Thread: 3/8 inch
- Max Working Pressure: 140 psi (0.97 MPa, 9.65 bar)
- Material: aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
- Operating Temp: 32°F to 140°F (0°C to 60°C)
- Size: Intermediate
- Drain Type: auto drain
- Dimensions: 8.66 in (220 mm) H x 2.17 in (55 mm) W
- Warranty: 1 year
- Instruction Manual: 3A8155A
Features
- Automatic drain functionality
- Intermediate size for balanced flow and compactness
- 140 PSI maximum working pressure
- Wide operating temperature range
- Durable multi-material construction
- High flow capacity at 77 CFM
Applications
- In-plant compressed air systems
- Service shops
- Heavy-duty mobile service trucks
- Automotive dealerships
- Fast lube centers
- Fleet services facilities
Related Parts
Part of a family of filter regulators with varying sizes and drain options. Model 133217 offers the largest flow capacity in the series with automatic drain convenience. For ensuring consistent air pressure and separation of dust, dirt, moisture, and other contaminants in compressed air systems. For professional use only. Part 133217 is listed as an 'Intermediate' series component along with other models in the same product family
Reference Manuals
