GRACO 198013 - Oscillating Tip, 3.5 Orifice, 0.149" OD, 345 Bar

Oscillating tip designed for pressure washers, delivering enhanced cleaning power through rotating and oscillating action. The 15-degree yellow tip provides effective cleaning for general applications while the oscillating motion increases cleaning power and decreases cleaning time compared to standard spray tips.

Specifications

• Outside Diameter: 0.149 in (3.8 mm)
• Max Working Pressure: 345 bar
• Spray Angle: oscillating
• Tip Type: pressure washer tip
• Spray Pattern: Oscillating
• Orifice Size: 3.5
• Tip Angle: 15 degree
• Tip Color: yellow

Features

• Oscillating spray pattern for enhanced cleaning
• 345 bar pressure rating
• Designed for G-FORCE II systems
• Oscillating spray pattern for even coverage
• High pressure rating up to 5,000 psi (344 bar)
• Precision engineered 0.149 in (3.8 mm) orifice

Applications

• Pressure washing
• Surface cleaning
• Industrial cleaning applications
• High-pressure spray finishing
• Professional coating applications
• Industrial spray operations

Compatible Equipment

• G-FORCE II pressure washers
• 3325 HA-DD
• 3230 HA-DD
• 4040 HG-DD
• 4040 HC-DD
• 4040 HG-BD

Related Parts

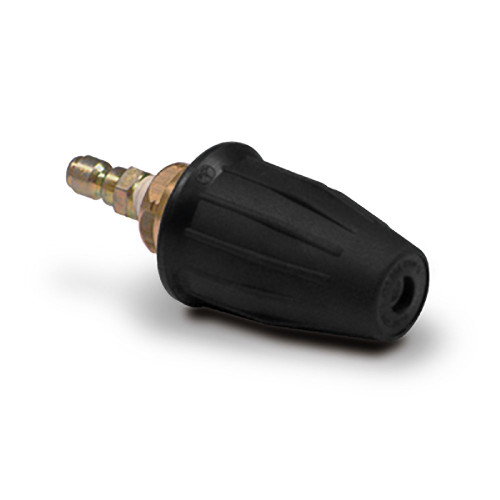

• 198012 - Rotating pressure washer tip (275 bar)
• 198014 - Rotating pressure washer tip (360 bar)
• 805535 - Washer Spray Tip, 0003
• 805539 - Washer Spray Tip, 00035
• 805543 - Washer Spray Tip, 0004
• 805547 - Washer Spray Tip, 00045, 4.5 Orifice, 275 Bar (4000 PSI)
• 805555 - Washer Spray Tip, 00055

Part of the Tips accessories section for G-FORCE II pressure washers. Other tip options include rotating tips at different pressure ratings and various orifice sizes with different spray angles (0°, 15°, 25°, 40°). Part of comprehensive spray tip family offering various orifice sizes and spray patterns for different application requirements Part of the oscillating tip series designed for 5000 psi applications. The 15-degree yellow tip is suitable for general cleaning applications with concentrated spray pattern.

Reference Manuals

• 320582 (Page 4)
• 338026 (Page 4)
• 338781 (Page 8)
• 344379 (Page 8)
