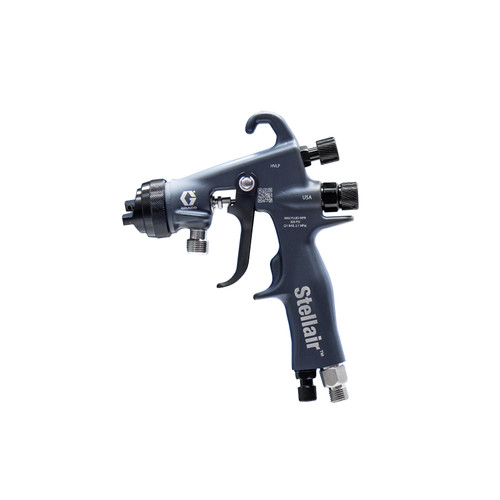

GRACO 2004147 - Stellair Conventional Air Spray Gun, General Industry, .042" PEEK Tip
GRACO 2004147 Stellair ACE Pressure Feed Gun with HVLP spray technology, designed for conventional applications delivering precision efficiency and quality finishes. Built with durable aluminum gun body and stainless steel fluid components for superior performance.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.,Whether you’re a custom shop or a high volume manufacturing facility, Stellair brings industry leading finish quality to these and other applications: automotive, metal, plastic, and wood.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Manual |
| Compatible Material | CARC, Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.042 |
| Gun Activation | Manual |
| Gun Type | Conventional Gun |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Needle Tip Material | PEEK |
| Product Type | Spray Gun |
| Series | Manual |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the Stellair ACE Air Spray Guns line featuring carbon reinforced polymer construction for lightweight, durable operation with superior finishes. Part of General Industry gun model family with various nozzle sizes and tip constructions available in Conventional, HVLP, and Compliant spray technologies This is a complete spray component kit for General Industry and Automotive applications with conventional spray type and 0.042 inch PEEK tip
Reference Manuals
GRACO 2004147 - Stellair Conventional Air Spray Gun, General Industry, .042" PEEK Tip
GRACO 2004147 Stellair ACE Pressure Feed Gun with HVLP spray technology, designed for conventional applications delivering precision efficiency and quality finishes. Built with durable aluminum gun body and stainless steel fluid components for superior performance.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.,Whether you’re a custom shop or a high volume manufacturing facility, Stellair brings industry leading finish quality to these and other applications: automotive, metal, plastic, and wood.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Manual |
| Compatible Material | CARC, Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.042 |
| Gun Activation | Manual |
| Gun Type | Conventional Gun |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Needle Tip Material | PEEK |
| Product Type | Spray Gun |
| Series | Manual |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the Stellair ACE Air Spray Guns line featuring carbon reinforced polymer construction for lightweight, durable operation with superior finishes. Part of General Industry gun model family with various nozzle sizes and tip constructions available in Conventional, HVLP, and Compliant spray technologies This is a complete spray component kit for General Industry and Automotive applications with conventional spray type and 0.042 inch PEEK tip
Reference Manuals
