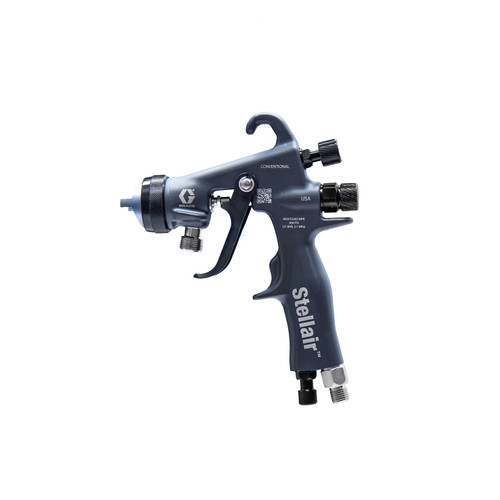

GRACO 2004150 - Stellair Conventional Air Spray Gun, General Industry, .110" PEEK Tip
Stellair ACE Pressure Feed Gun designed for general industry applications, delivering precision efficiency and quality finishes. Built on an aluminum gun body with stainless steel fluid components and carbon reinforced polymer construction for durability and lightweight performance.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.,Whether you’re a custom shop or a high volume manufacturing facility, Stellair brings industry leading finish quality to these and other applications: automotive, metal, plastic, and wood.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Manual |
| Compatible Material | CARC, Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.110 |
| Gun Activation | Manual |
| Gun Type | Conventional Gun |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Needle Tip Material | PEEK |
| Product Type | Spray Gun |
| Series | Manual |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the Stellair ACE Pressure Feed Gun family available in both pressure and gravity feed models. The 0.042 (1.1mm) nozzle size makes it suitable for medium viscosity materials and general industrial coating applications. This is an HVLP spray gun model for general industry applications with PEEK tip construction This is a spray component kit for General Industry Conventional applications with model number N/A listed
Reference Manuals
GRACO 2004150 - Stellair Conventional Air Spray Gun, General Industry, .110" PEEK Tip
Stellair ACE Pressure Feed Gun designed for general industry applications, delivering precision efficiency and quality finishes. Built on an aluminum gun body with stainless steel fluid components and carbon reinforced polymer construction for durability and lightweight performance.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.,Whether you’re a custom shop or a high volume manufacturing facility, Stellair brings industry leading finish quality to these and other applications: automotive, metal, plastic, and wood.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Manual |
| Compatible Material | CARC, Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.110 |
| Gun Activation | Manual |
| Gun Type | Conventional Gun |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Needle Tip Material | PEEK |
| Product Type | Spray Gun |
| Series | Manual |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the Stellair ACE Pressure Feed Gun family available in both pressure and gravity feed models. The 0.042 (1.1mm) nozzle size makes it suitable for medium viscosity materials and general industrial coating applications. This is an HVLP spray gun model for general industry applications with PEEK tip construction This is a spray component kit for General Industry Conventional applications with model number N/A listed
Reference Manuals
