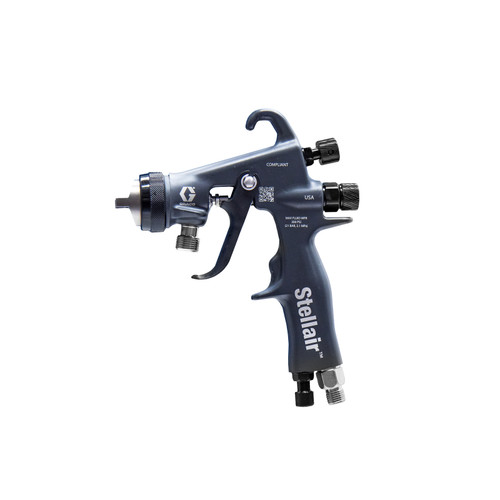

GRACO 2004171 - Stellair Compliant Air Spray Gun, High Solids, .070" High-Wear Tip
Stellair ACE Pressure Feed Gun designed for high solids applications. Built on an aluminum gun body with stainless steel fluid components for durability. Features carbon reinforced polymer construction for a lightweight gun that delivers superior finishes with precision efficiency and quality results.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | High Solids |
| Applicator Type | Manual |
| Compatible Material | CARC, Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.070 |
| Gun Activation | Manual |
| Gun Type | Compliant Gun |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Needle Tip Material | High Wear |
| Product Type | Spray Gun |
| Series | Manual |
| Spray Type | Air Spray |
| Technology Type | Compliant |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the Stellair ACE Pressure Feed Gun family. Available in both pressure feed and gravity feed models. Designed for wide variety of applications delivering precision efficiency and quality finishes. High Solids gun models include high wear (Elite) packing, carbide needle, and carbide nozzle tip Part of High Solids product line. Includes Elite packing, carbide needle, and carbide tip nozzle.
