Item #: 2005975
Price: $893.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

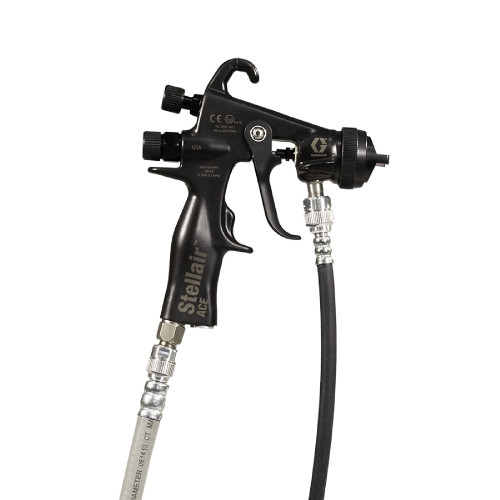

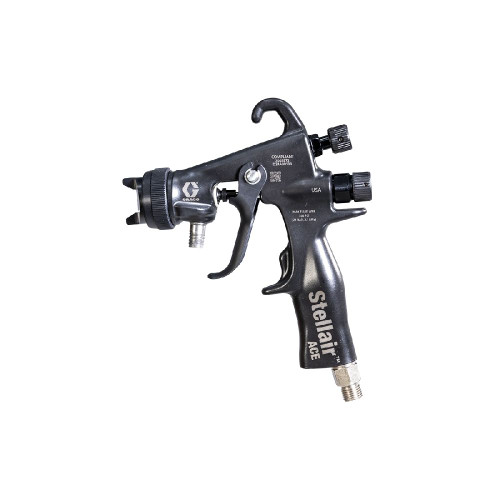

GRACO 2005975 - Stellair ACE Air Spray Gun Kit w/ Whip Hose, 055" x 6 ft, .Nozzle, Carbon
Stellair ACE Gun, LVMP, 6 ft (1.8m) Hose, .055 in (1.4 mm) nozzle. Part of the Stellair ACE Gravity Gun line designed for small-batch jobs and delivers high-quality finish. Ideal for low-volume color production, touch-ups and material supplier testing with industry-leading spray performance and lightweight ergonomics.
The unique carbon reinforced construction of this pressure feed air spray gun lightens the load for industrial painters. At 209 grams (7.4 ounces), Stellair ACE is up to 50 percent lighter than almost any other manual sprayer.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Air Spray |
| Compatible Material | Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.125 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.055 |
| Gun Activation | Manual |
| Gun Type | HVLP/LVMP Gun |
| Gun Weight (oz) | 7.4 |
| Hose Package | Includes Hose |
| Includes | Air Cap, Needle Assembly, Nozzle, 6 ft air hose, 6 ft fluid hose |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 109 |
| Model | Stellair ACE |
| Series | Manual |
| Spray Type | Air Spray |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, PEEK, Acetal, Chemically Resistant Fluoroelastamer, UHMWPE, PPS |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Available in both pressure and gravity feed gun models. Flexible and lightweight hoses are designed exclusively for Stellair ACE with quick connect fittings that can be tightened and removed by hand. Models include 6 ft (1.8 m) quick connect fluid whip hose (2005144) and 6 ft (1.8 m) air whip hose (2005139). See Hoses, page 25. This model includes hoses as indicated by the checkmark in the 'Hoses Included' column. Models include 6 ft (1.8 m) quick connect fluid and air whip hoses. Part of the Spray Component Kits family with different nozzle sizes.
Reference Manuals
GRACO 2005975 - Stellair ACE Air Spray Gun Kit w/ Whip Hose, 055" x 6 ft, .Nozzle, Carbon
Stellair ACE Gun, LVMP, 6 ft (1.8m) Hose, .055 in (1.4 mm) nozzle. Part of the Stellair ACE Gravity Gun line designed for small-batch jobs and delivers high-quality finish. Ideal for low-volume color production, touch-ups and material supplier testing with industry-leading spray performance and lightweight ergonomics.
The unique carbon reinforced construction of this pressure feed air spray gun lightens the load for industrial painters. At 209 grams (7.4 ounces), Stellair ACE is up to 50 percent lighter than almost any other manual sprayer.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Air Spray |
| Compatible Material | Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.125 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.055 |
| Gun Activation | Manual |
| Gun Type | HVLP/LVMP Gun |
| Gun Weight (oz) | 7.4 |
| Hose Package | Includes Hose |
| Includes | Air Cap, Needle Assembly, Nozzle, 6 ft air hose, 6 ft fluid hose |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 109 |
| Model | Stellair ACE |
| Series | Manual |
| Spray Type | Air Spray |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, PEEK, Acetal, Chemically Resistant Fluoroelastamer, UHMWPE, PPS |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Available in both pressure and gravity feed gun models. Flexible and lightweight hoses are designed exclusively for Stellair ACE with quick connect fittings that can be tightened and removed by hand. Models include 6 ft (1.8 m) quick connect fluid whip hose (2005144) and 6 ft (1.8 m) air whip hose (2005139). See Hoses, page 25. This model includes hoses as indicated by the checkmark in the 'Hoses Included' column. Models include 6 ft (1.8 m) quick connect fluid and air whip hoses. Part of the Spray Component Kits family with different nozzle sizes.
Reference Manuals
