Item #: 2008540
Price: $1,687.86
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

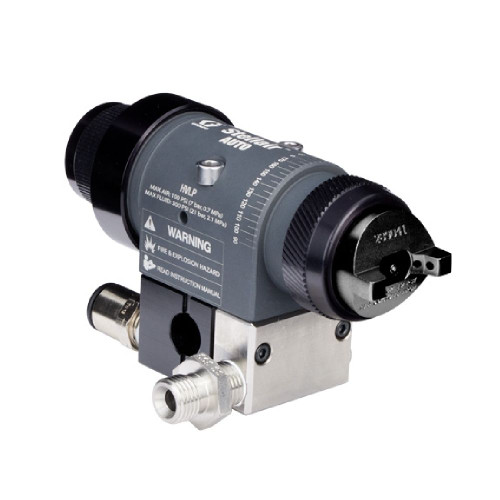

GRACO 2008540 - Stellair Automatic Conventional Air Spray Gun, .059" Ceramic Nozzle
Stellair automatic air spray gun designed for high wear applications that can withstand abrasive materials. Features a 0.059" (1.5mm) nozzle size and conventional spray technology for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures.
Conventional air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | High Wear |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Ceramics, High Solids, Solvent-Borne Material, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.059 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 10 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Model | Stellair |
| Needle Tip Material | Carbide |
| Nozzle Size (in) | 0.059 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.1 |
| Overall Width (in) | 1.63 |
| Series | Auto |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
| Spray Type | Air Spray |
Features
Applications
Compatible Equipment
Related Parts
Part of the Stellair automatic air spray gun family. Does not include fluid control knob. For more information refer to manual #407194. Part of the Stellair Automatic Air Spray Gun family. For more information, refer to manual #407194. This is a gun model that requires a separate manifold. Part of the High Solids application family with different nozzle sizes and spray technologies available.
Reference Manuals
GRACO 2008540 - Stellair Automatic Conventional Air Spray Gun, .059" Ceramic Nozzle
Stellair automatic air spray gun designed for high wear applications that can withstand abrasive materials. Features a 0.059" (1.5mm) nozzle size and conventional spray technology for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures.
Conventional air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | High Wear |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Ceramics, High Solids, Solvent-Borne Material, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.059 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 10 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Model | Stellair |
| Needle Tip Material | Carbide |
| Nozzle Size (in) | 0.059 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.1 |
| Overall Width (in) | 1.63 |
| Series | Auto |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
| Spray Type | Air Spray |
Features
Applications
Compatible Equipment
Related Parts
Part of the Stellair automatic air spray gun family. Does not include fluid control knob. For more information refer to manual #407194. Part of the Stellair Automatic Air Spray Gun family. For more information, refer to manual #407194. This is a gun model that requires a separate manifold. Part of the High Solids application family with different nozzle sizes and spray technologies available.
Reference Manuals
