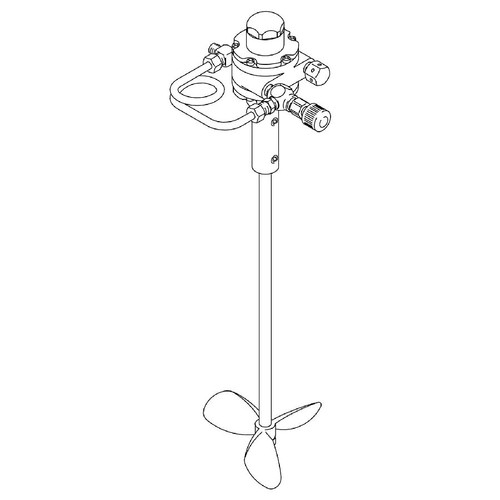

GRACO 204536 - Pail Cover Agitator for 5 Gal. Pails, Air-Driven, 1/4 HP, 13.25" Long, SST, Round Prop (3 Blade), 100 PSI

Round prop pail cover agitator designed for easy moving and color changes in 5-gallon pails. Features lift handles for convenient operation, locking bolts to secure cover and reduce spills, making it ideal for wall mount pumps or spray packages.

Features:

• Lift handles for easy moving and color changes
• Locking bolts to secure cover and reduce spills
• Ideal for wall mount pumps or spray packages

Additional Specifications

• Length: 13.25 inches (33.6 cm)
• Max Working Pressure: 100 PSI (0.7 MPa, 7 bar) Maximum Working Pressure
• Material: SST (Stainless Steel)
• Drive: Air
• Hp: 1/4
• Size: 5 gal (18 l)
• Prop Type: Round prop (3 blade)
• Air Driven: yes
• Propeller Type: 3-blade based on diagram

Features

• Lift handles for easy moving and color changes
• Locking bolts to secure cover and reduce spills
• Ideal for wall mount pumps or spray packages
• Round prop with 3 blade design
• Air-driven operation
• Stainless steel construction

Applications

• Wall mount pumps
• Spray packages
• 5-gallon pail mixing applications
• Color change operations

Compatible Equipment

• 5-gallon pails
• industrial coatings applications
• 5 gallon pails based on product title

Related Parts

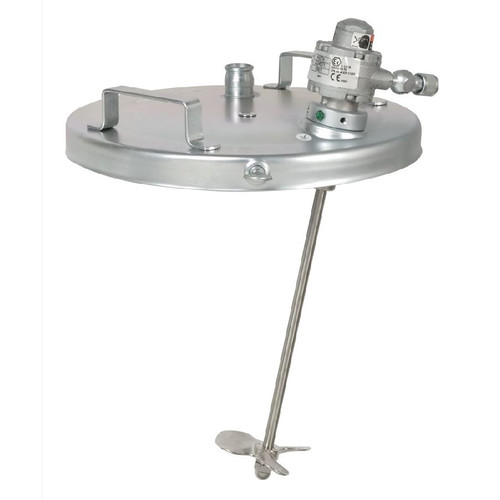

• 226086 - Pail Cover Agitator for 5 Gal. Pails, Air-Driven, 1/4 HP, 13.25" Long, Carbon Steel
• 243340 - 5 Gal Stainless Pail Cover w/ Stainless Agitator
• 245081 - 5 Gal Stainless Pail Agitator Kit for Triton Packages

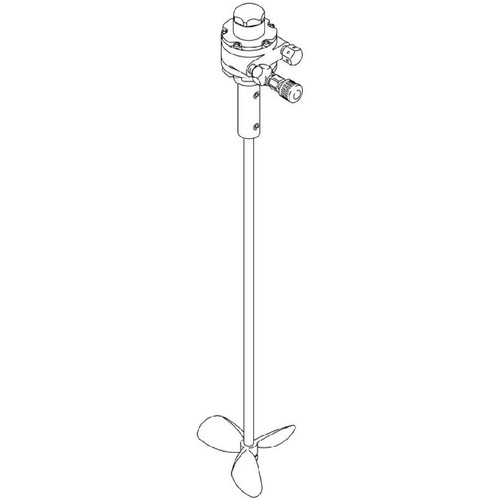

• 224572 - Pail Cover Agitator for 10 Gallon Pails, Air-Driven, 1/4 HP, 17.25" Long, Stainless, Single Round Prop (3 Blade)

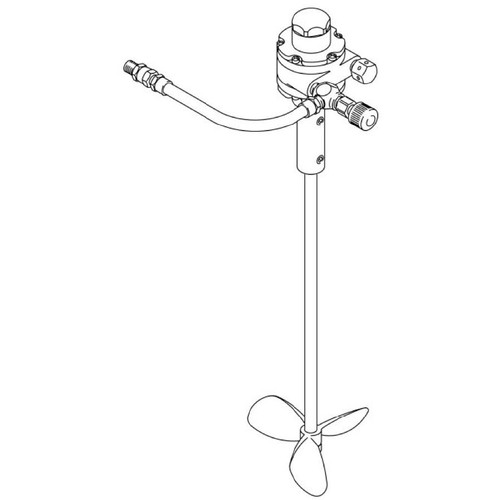

• 222695 - Pail Cover Agitator for 5 Gallon Pails, 1/4 HP Air-Driven, Round Prop. 13.25", Stainless
• 224571 - Air-Driven Agitator for 5 Gal. Pails, Compatible w/ Agitator Speed Controller

Part of the pail cover agitator family with various configurations available for different pail sizes and agitator types For mixing and maintaining suspension of industrial coatings. For professional use only. Model shown with propeller agitator blade in technical diagram. Model 204536 has no agency approvals listed, while related models 224571 and 224572 have CE, UKCA, and ATEX certifications

Reference Manuals

• 345020 (Page 19)
• 348645 (Page 13)
• 306565 (Page 1)
