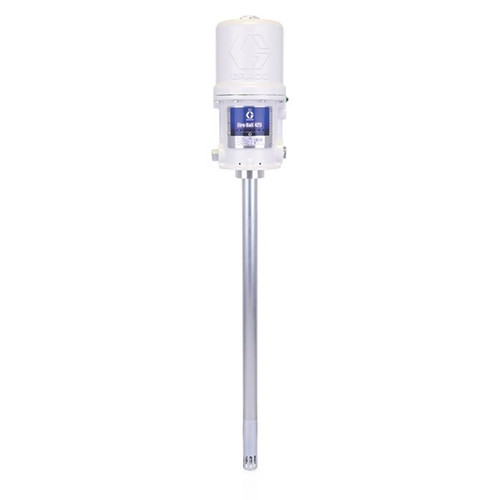

GRACO 205395 - Fire-Ball 425 Grease Pump for 400 lb. Drum, Carbon Steel, 7500 PSI

GRACO Fire-Ball 425 high-volume grease pump designed for 180 kg drum applications, delivering reliable performance for heavy-duty lubrication systems with maximum output pressure of 517 bar (7500 PSI)

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Additional Specifications

• Flow Rate: 1.5 kg/min (3.35 lb/min)
• Length: Up to 76.2 m (250 ft)
• Max Working Pressure: 517 bar (51.7 MPa, 7500 PSI)
• Material: CS, Leather
• Air Use: 0.54m³/min (19 cfm) at 4.8 bar (70 PSI)
• Air Inlet: 1-1/2" NPT(F)
• Drum Size: 180 kg
• Application: High volume
• Max Air Input Pressure: 150 PSI (1.0 MPa, 10 bar)
• Series: N

Features

• High volume grease pumping capability
• 50:1 pump ratio for efficient operation
• Maximum output pressure of 517 bar (7500 PSI)
• Continuous-duty flow rate of 1.5 kg/min
• Drum-pump only design for 180 kg containers
• Slotted fluid inlet design

Applications

• High volume grease applications
• Industrial lubrication systems
• Heavy-duty equipment maintenance

Compatible Equipment

• 180 kg drums
• Fire-Ball 425 systems
• Model 226018 - Fire-Ball 425 Series 50:1 400 lb. Grease Pump Stationary Supply Topper-Inductor Package, 400 lb. Drum

Related Parts

• 246909 - Mini Fire-Ball 225 for 16 kg drums
• 239877/239888 - Fire-Ball 300 for 16/180 kg drums
• 205394 - Brass Fire-Ball 425 Series 50:1 Grease Pump - Model 205394, 7500 PSI (51.7 MPa

Part of the Fire-Ball grease pump family with manual reference 306674. Wetted materials include CS and Leather components. See manual 306674 for parts For pumping non-corrosive and non-abrasive greases and lubricants only. For professional use only. Model 205394 is Series E variant of the same pump family.

Reference Manuals

• 300787 (Page 45)
• 306556 (Page 18)
• 306674 (Page 1)
• 307880 (Page 11)
• 308027 (Page 31)
