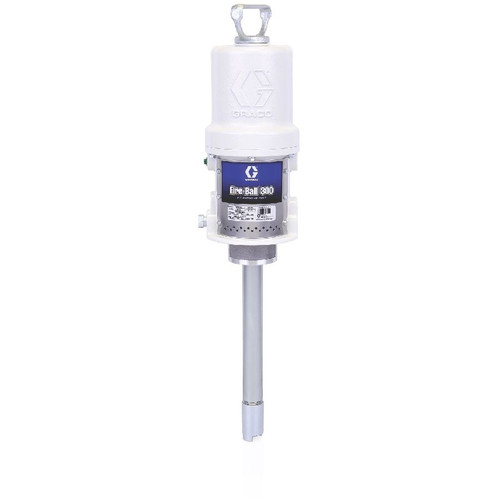

GRACO 206405 - Fire-Ball 300 13" Length 15:1 Air-Powered Grease Pump 35lbs 5 Gal Drum, 2700 PSI

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

Install the Fire-Ball 300 15:1 in high pressure, medium volume undercoating and rust-proofing applications such as automotive dealerships, fast lube centers, and service shops.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Additional Specifications

• Max Working Pressure: 2700 PSI (18.6 MPa, 186 bar) Maximum Working Pressure
• Container Size: 35 lb. pail
• Series: K
• Max Air Input Pressure: 180 PSI (1.2 Ma, 12 bar)
• Application: For pumping petroleum-based undercoating material
• Pail Size: 35 lb

Compatible Equipment

• Fire-Ball 300 Pumps
• 35 lb pail

Related Parts

• 206699 - Series J, 120 lb. drum size
• 206700 - Series J, 400 lb. drum size, 27, 28, 29, 30, 31, 35, 37, 38

Kit Contents

• 100114 - BALL, steel, 0.44" dia.
• 100400 - BALL, steel, 0.75" dia.
• 101579 - PIN, roll, 0.12" dia., 0.75" long
• 150451 - GASKET, copper
• 150694 - GASKET, copper
• 165970 - ROD, connecting, 5 1/4" long
• 165971 - TUBE, riser, 11-1/16" long
• 160939 - BODY, piston
• 160940 - COUPLING, piston
• 160941 - BEARING, press fitted, brass
• 160942 - SEAL, piston; PTFE
• 160943 - PACKING, block, nitrile rubber
• 160944 - BEARING, piston, brass
• 160945 - SEAT, piston, reversible
• 234578 - PLATE, warning (with muffler)

This is a Fire-Ball 300 pump model for pumping petroleum-based undercoating material. Manual document number 306531Z1. Model 206405 shown in illustration. This page shows an exploded parts diagram for Model 206405 but does not contain detailed specifications for the complete unit This appears to be a complete pump assembly. Parts marked with * are included in Pump Repair Kit 206925, parts marked with ** are included in Muffler Repair Kit 222559, and parts marked with † are included in Air Motor Repair Kit 206728.

Reference Manuals

• 306531 (Page 1)
• 307879 (Page 7)
• 307882 (Page 8)
