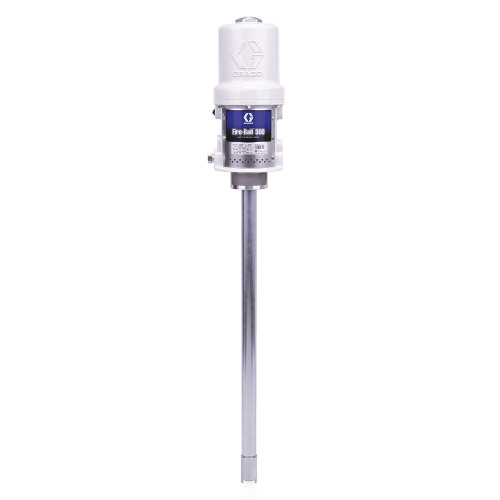

GRACO 206699 - Fire-Ball 300 15:1 Air-Powered Grease Pump 120lbs, 16G Drum, 2700 PSI

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

Install the Fire-Ball 300 15:1 in high pressure, medium volume undercoating and rust-proofing applications such as automotive dealerships, fast lube centers, and service shops.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Additional Specifications

• Max Working Pressure: 2700 PSI (18.6 MPa, 186 bar) Maximum Working Pressure
• Drum Size: 120 lb.
• Series: J
• Max Air Input Pressure: 180 PSI (1.2 Ma, 12 bar)
• Application: For pumping petroleum-based undercoating material
• Model: 206699

Compatible Equipment

• Fire-Ball 300 Pumps

Related Parts

• 206405 - Model No. 206405, Series K, 35 lb. pail size
• 206700 - Model No. 206700, Series J, 400 lb. drum size
• 206700 - Fire-Ball 300, 15:1 Air-Powered Grease Pump (400lbs, 55G Drum)

This is one of three Fire-Ball 300 pump models listed, specifically designed for 120 lb. drum size applications This appears to be a model designation for a 120 lb drum size unit in the Series J family. Model 206700 is the related 400 lb drum size variant. This appears to be a complete pump model rather than an individual component part. The parts list shows replacement parts FOR this model. Related model 206700 is the 400 lb. drum size version of the same Series J pump.

Reference Manuals

• 306531 (Page 1)
• 307879 (Page 8)
• 307882 (Page 9)
