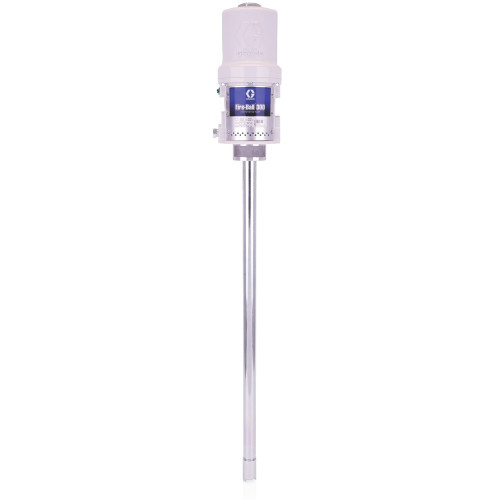

GRACO 206700 - Fire-Ball 300, 15:1 Air-Powered Grease Pump (400lbs, 55G Drum), 2700 PSI

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

Install the Fire-Ball 300 15:1 in high pressure, medium volume undercoating and rust-proofing applications such as automotive dealerships, fast lube centers, and service shops.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Additional Specifications

• Max Working Pressure: 2700 PSI (18.6 MPa, 186 bar) Maximum Working Pressure
• Drum Size: 400 lb.
• Series: Series J
• Max Air Input Pressure: 180 PSI (1.2 Ma, 12 bar)
• Application: For pumping petroleum-based undercoating material
• Drum Capacity: 400 lb

Compatible Equipment

• Fire-Ball 300 Pumps
• 400 lb. drum applications
• 400 lb drums
• 55 gallon drums

Related Parts

• 206405 - Model No. 206405, Series K, 35 lb. pail size
• 206699 - Model No. 206699, Series J, 120 lb. drum size
• 206699 - Fire-Ball 300 15:1 Air-Powered Grease Pump 120lbs, 16G Drum
• 206699 - Model 206699, Series J, 120 lb. drum size

Kit Contents

• 160261 - NUT, adjusting
• 160618 - WIRE, lock
• 172867 - ACTUATOR, pilot valve
• 160621 - O-RING, nitrile rubber
• 160623 - ARM, toggle
• 160624 - O-RING, nitrile rubber
• 160625 - O-RING, nitrile rubber
• 234577 - PLATE, identification, with muffler
• 160639 - ROD, piston
• 160640 - NUT, packing
• 160641 - WASHER, backup
• 160644 - PACKING, flat leather
• 236079 - VALVE, poppet
• 160932 - GASKET, copper
• 161435 - NUT, cylinder cap

This is one of three models in the 15:1 Fire-Ball 300 Pumps family, specifically designed for 400 lb. drum size applications This appears to be a model number for equipment rather than an individual part. Related to Model 206699 (Series J, 120 lb. drum size). The page shows parts breakdown for these models. This is a complete pump model. Some parts are included in separate repair kits: Pump Repair Kit 206925, Muffler Repair Kit 222559, and Air Motor Repair Kit 206728.

Reference Manuals

• 306531 (Page 1)
• 307879 (Page 9)
• 307882 (Page 10)
