GRACO 222245 - Fire-Ball 300 Series 50:1 120 lb. Grease Pump - Portable Package w/ Heavy Duty Cart, 5000 PSI

Fire-Ball 300 Series 50:1 120 lb. Grease Pump - Portable Package w/ Heavy Duty Cart

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

Install the Fire-Ball 300 50:1 in grease dispense applications.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

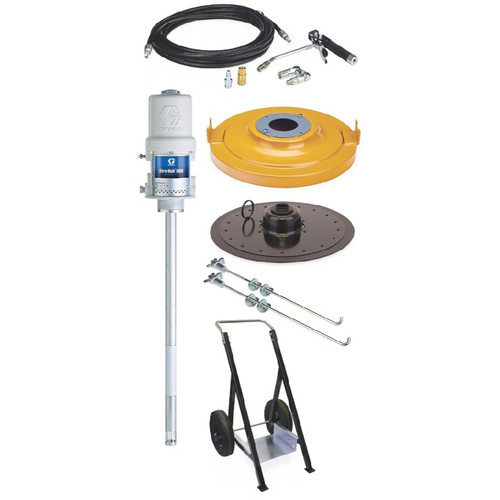

Package Includes:

• GRACO 222061 Hydraulic Control Module with Switch and 3 Position, 4-Way Valve for XD60/70/80 Series Hydraulic Powered Hose Reels, 24V
• GRACO 222060 Cover
• GRACO 222243 Heavy-Duty Cart w/Pneumatic Wheels for 120 lb Drums
• GRACO 239887 Fire-Ball 300, 50:1 Air-Powered Grease Pump (120lbs, 16G Drum)
• GRACO 24F902 Fire-Ball LD Follower Plate for 70 and 120 lb Drum
• GRACO 222383 Mini Fire-Ball 225 or 300, 50:1 Dispense, Hose, and Fitting Kit

Additional Specifications

• Max Working Pressure: 5000 PSI (35, 350 MPa, bar)
• Maximum Working Pressure: 5000 PSI (35, 350 MPa, bar)
• Size: 120 lb
• Base Type: 2-wheel truck
• Ratio: 50:1
• Capacity: 120 lb
• Drum Size: 120 lb

Compatible Equipment

• 2-wheel truck base

Related Parts

• 225773 - Fire-Ball 300 Series 50:1 25 to 50 lb. Grease Pump - Portable Pail Dispenser Package
• 245695 - Fire-Ball 300 Series 50:1, 35 to 50 lb Grease Pump - Portable Pail Dispenser Package
• 240883 - Fire-Ball 300 Series 50:1, 35 to 50 lb Grease Pump Cart-Mounted Pail Topper CE Package
• 225827 - Fire-Ball 300 Series 50:1 35 to 50 lb. Grease Pump - Stationary Pail Dispenser Package
• 222069 - Fire-Ball 300 Series 50:1 25 to 50 lb. (11.3 to 23 kg) Grease Pump - Portable Pail Dispenser Package
• 245694 - Fire-Ball 300 Series 50:1, 25 to 50 lb Grease Pump - Portable Pail Dispenser Package
• 240885 - Fire-Ball 300 Series 50:1, 35 to 50 lb Grease Pump - Portable Pail Dispenser CE Package
• 226012 - Fire-Ball 300 Series 50:1 50 lb. Grease Pump Cart-Mounted Pail Topper Package
• 240886 - Fire-Ball 300 Series 50:1, 35 to 50 lb Grease Pump - Cart-Mounted Pail Topper CE Package

Includes Dispense Kit, Cover, Inductor, and Follow Plate. Not CE Certified (unlike some other models in the series). Model 222245 is grouped with model 240882 for installation instructions and refers to FIG. 5. This is a cart-mounted grease pump system with heavy duty cart assembly. This appears to be a model number rather than an individual part. Model 222245 and 240882 are listed together as compatible models for 120 lb drum size equipment.

Reference Manuals

• 307878 (Page 2)
