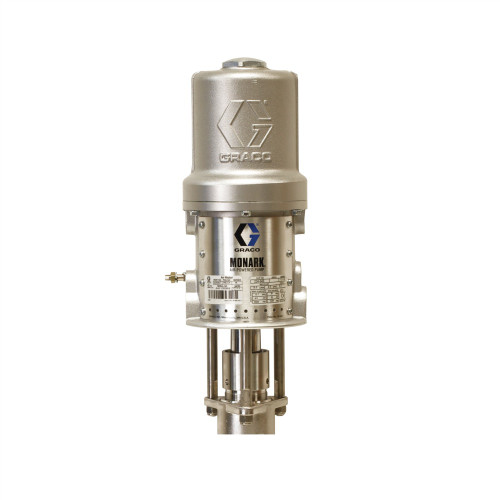

GRACO 224345 - Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/Neoprene Packings, 180 PSI
Monark 5:1 pneumatic 2-ball piston pump designed for handling challenging fluids including solventborne and waterborne fluids, high solids plural component coatings, resins, stains, lacquers, varnishes, cleaning fluids, acid-catalyzed materials, and high solid coatings. Features stainless steel construction with UHMWPE/Neoprene packings for reliable performance in demanding applications.
Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes.
- Drum and stubby length models available for mounting and application flexibility
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids
- Fluid return stanchion for circulation back to the pump
- Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids
Additional Specifications
- Flow Rate: 157 cc output per cycle
- Max Working Pressure: 180 PSI (12.4, 1.2) / 120 PSI (8, 0.8) max inlet
- Construction: Stubby/SST
- Packing Type: UHMWPE/T
- Maximum Working Pressure: 900 PSI (62, 6.2)
- Output At 60 Cpm: 2.5 gpm (9.4 lpm)
- Max Air Input Pressure: 120 PSI (8.4 bar)
- Series: Series A
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Supply |
| Compatible Material | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Stubby Length |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 6.2 |
| Maximum Working Pressure (psi) | 900 |
| Portable | Non-Portable |
| Pump Ratio | 5:1 |
| Seal Material | UHMWPE, Neoprene |
| Standards Met | ATEX, CE |
| Type | Pneumatic Piston Pump |
| Wetted Material | Stainless Steel |
Features
- 5:1 pressure ratio for efficient fluid transfer
- Stubby stainless steel construction for durability
- UHMWPE/neoprene packings for chemical compatibility
- Air-operated piston design for reliable operation
- Part of proven Monark pump family
- Stainless steel construction for durability
Applications
- Medium-pressure fluid transfer
- Chemical processing applications
- Industrial fluid handling
- Sealant and adhesive dispensing systems
- Solventborne and waterborne fluids
- High solids plural component coatings
Compatible Equipment
- Monark pneumatic pump systems
- pressure washing applications with water and cleaning solutions
Related Parts
- 218956 - Carbon Steel Monark 5:1 Pneumatic 2-Ball Piston Pump, 35 Bar (3.5 MPa
- 224343 - Monark 5:1 Pneumatic 2-Ball Piston Pump, SS, UHMWPE/PTFE Packings
- 224345 - Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/Neoprene Packings
- 224350 - Stainless Uhmwpe/PTFE Packings Drum Length SS Monark 5:1 Pneumatic 2-Ball Piston Pump
- 218763 - Monark 1.5:1 Pneumatic 2-Ball Piston Pump, SS, Stubby Length
- 223186 - Leather Stubby Length Cs Monark 2:1 Pneumatic 2-Ball Piston Pump
- 239327 - Monark 15:1 Pneumatic 2-Ball Piston Pump, CS, Stubby Length, UHMWPE/Leather Packings
Performance charts available showing fluid flow rates vs outlet pressure and air consumption at various air inlet pressures. President options available for 10:1 and 15:1 ratios. Part of the Monark pneumatic 2-ball piston pump family with various ratios and configurations available For use in pressure washing applications with water and cleaning solutions only. For professional use only. UHMWPE/Neoprene packed for pressure washing.
