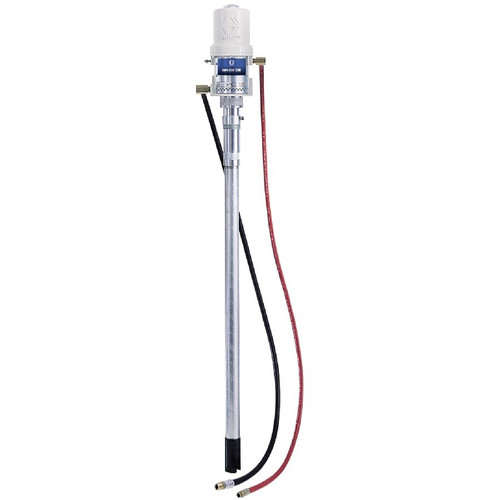

GRACO 225931 - Fire-Ball 300 Series 5:1 275 Gallon Oil Pump -Bung Mounted Package, 900 PSI
Fire-Ball 300 heavy-duty oil pump designed for medium volume applications requiring continuous duty operation. Built for demanding environments with maintenance-saving features to reduce downtime and save money. Features non-corrosive air motor design with no metal-to-metal contact for longer pump life and reliable operation in harsh environments.
As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.
- Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Package Includes:
- GRACO 222087 Fire-Ball 300 5:1 Oil Pump 275 gal/1040 lb Tank Size, Bung Mount
- GRACO 222063 6' Hose Fitting Kit for Drum-Mounted Mini Fire-Ball 225 & 300 Pumps
Additional Specifications
- Flow Rate: 9.3 lpm (2.8 gpm)
- Length: Up to 152.5 m (500 ft)
- Max Working Pressure: 62 bar (0.62 MPa, 900 PSI)
- Cycles Per Litre: 11.4 cycles per litre (43.5 cycles per gallon)
- Air Use Flow: 0.765 m³/min at 11.5 l/min (27 scfm at 3 gpm)
- Air Inlet: 3/8" NPT(F)
- Tank Capacity: 275 gallon
- Tank Type: obround
- Capacity: 275 gallons
| Air Inlet Size (in) |
0.375 |
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Application |
Industrial |
| Compatible Material |
Oil |
| Fluid Inlet Size (in) |
1.5 |
| Fluid Inlet Thread Gender |
Female |
| Fluid Inlet Thread Type |
NPT |
| Fluid Outlet Size (in) |
1/2 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| Includes |
Hose Kit |
| Maximum Air Working Pressure |
180 |
| Maximum Flow Rate (gpm @ 80 cpm) |
2.8 |
| Maximum Fluid Working Pressure (psi) |
900 |
| Maximum Working Pressure (MPa) |
6.2 |
| Maximum Working Pressure (psi) |
900 |
| Motor Type |
Pneumatic |
| Power Type |
Pneumatic |
| Pump Ratio |
5:1 |
| Pump Weight (lb) |
17 |
| Series |
300 |
| Type |
Piston Pump Package |
| Wetted Material |
Steel, Polyurethane, Aluminum, Buna-N |
Features
- Durable non-corrosive air motor design for long life
- High performance with no metal-to-metal contact
- Reliable double-acting pump provides reliable fluid flow
- Easy maintenance with few moving parts
- Constant operation with open exhaust port without icing
- Bung or Cover Mounted Package
Applications
- Medium volume oil and grease pumping
- Continuous duty applications
- Demanding industrial environments
- Low, medium and high volume lubrication applications
Compatible Equipment
- Fire-Ball 300 series pumps
- 200 litre containers
- Fire-Ball 300 Series 5:1 pump systems
Related Parts
Kit Contents
Available as bung or cover mounted package. Part of Fire-Ball 300 series. Manual reference: 306518. IMPA reference: 61 74 65. Type S (Stationary), CE Approved, includes Hose Kit and Bung Adapter This is a 275-gallon obround tank that works with Fire-Ball 300 series equipment. Model numbers 225931 and 241049 appear to be related variants.
