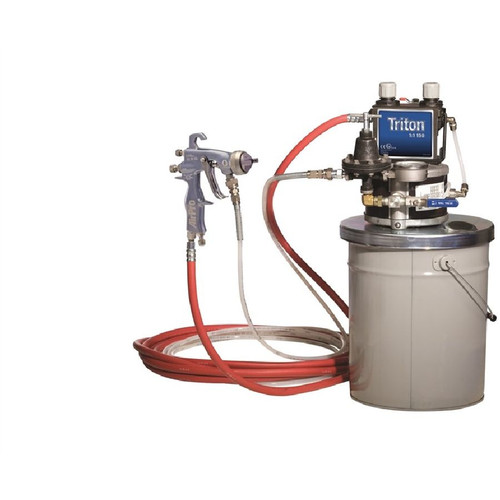

GRACO 233470 - Triton Alum Spray Package, Pail, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications, Aluminum
Triton air operated diaphragm pump spray package designed for aluminum applications, featuring affordable fine finish spraying with consistent spray pattern and uniform film thickness. This durable package requires little maintenance while delivering professional results for metal coating applications.
Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Quick color changes and fast material refills save time and money
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
- Rugged, aluminum construction pump handles a wide variety of fluids
Additional Specifications
- Max Working Pressure: 60 PSI
- Material: Aluminum
- Mount Type: Pail-Mount
- Fluid Regulator: 60 PSI
- Nozzle Size: .055 in (1.5 mm)
- Container Size: 5 gallon
- Pump Type: Aluminum Pump
- Gun Type: Stellair HVLP Spray Gun
- Series Code: D
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | AirPro |
| Gun Technology | HVLP |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Mount Location | Pail Mount |
| Mount Type | Pail Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | HVLP |
| Type | Air-Powered Sprayer |
| Weight (lb) | 22 |
Features
- Air operated diaphragm pump technology
- Affordable fine finish spraying capability
- Consistent spray pattern and uniform film thickness
- Durable package with little maintenance required
- Pail mount configuration for portability
- Includes suction hose for material pickup
Applications
- Metal coating applications
- Aluminum surface finishing
- Wood finishing applications
- Fine finish spraying projects
- Spray finishing applications requiring HVLP gun technology
- Portable spray operations with 5-gallon material capacity
Compatible Equipment
- Conventional air spray guns
- Stellair ACE spray guns
- Electrostatic Pro Xp spray guns
- AirPro HVLP Gun systems
- Pail Mount Series
- Stand Mount Series
Related Parts
- 233468 - Triton Alum Spray Package, Pail, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233469 - Triton SST Spray Package, Pail, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233471 - Triton SST Spray Package, Pail, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233475 - Triton Alum Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233476 - Triton SST Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233477 - Triton Alum Spray Package, Stand, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 233478 - Triton SST Spray Package, Stand, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233466 - Aluminum bare package
- 233467 - Stainless steel bare package
- 233468 - Aluminum with AirPro Conventional Gun
Kit Contents
- 2004152 - Stellair HVLP Gun 1.4 mm (.055 in) nozzle
- Air hose 7.6 m (25 ft)
- Fluid hose 7.6 m (25 ft)
- Suction hose
- 60 PSI fluid regulator
- AirPro HVLP Gun .055 in (1.5 mm) nozzle
- Air hose
- Fluid hose
Part of the Stellair General Metal Application Packages series. Package includes both air and fluid hoses at 25 ft length each. Part of TRITON Spray Finishing Package series. Aluminum packages use 60 PSI (0.4 MPa, 4.1 bar) acetal fluid regulator. Bare packages do not include hose and gun. This model has CE approval (Ex II 2 G Ex h IIB T6 Gb) but does not have UKCA approval according to the approvals table
