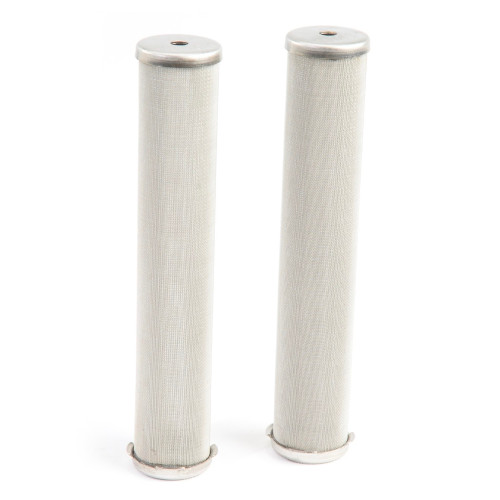

GRACO 238440 - SST 100 Mesh (Standard Option), 25-Pack

Replacement stainless steel screen element for GRACO high pressure filters. This 100 mesh screen provides effective filtration for catalyst and waterborne materials in spray finishing applications. Designed for use with the compact stainless steel high pressure filter assembly that's ideal for spray packages.

Specifications

• Material: SST (Stainless Steel)
• Mesh Size: 100 mesh (149 micron)
• Micron Rating: 149 micron
• Filtration: 145cc, 180cc, 220cc, 250cc, 290cc
• Mesh: 100
• Area: 18 sq in (116 sq cm)

Features

• 100 mesh filtration for fine particle removal
• 149 micron filtration rating
• Compatible with multiple Xtreme lower configurations
• 25-pack quantity for extended use
• 100 mesh (149 micron) filtration
• Standard mesh size for general applications

Applications

• Spray finishing operations
• Paint and coating applications
• Industrial spraying where fine filtration is required
• Paint spraying
• Coating applications
• Material filtration

Compatible Equipment

• Xtreme Lowers (various configurations)
• 145cc Xtreme
• 180cc Xtreme
• 220cc Xtreme
• 250cc Xtreme
• 290cc Xtreme

Related Parts

• 236495 - 30 Mesh (595 micron), 85cc, 115cc
• 236446 - 50 Mesh (250 micron), 85cc, 115cc
• 236447 - 100 Mesh (149 micron), 85cc, 115cc
• 224458 - 30 Mesh (595 micron), 145cc, 180cc, 220cc, 250cc, 290cc
• 224459 - 50 Mesh (250 micron), 145cc, 180cc, 220cc, 250cc, 290cc
• 234536 - 30 mesh (595 micron), 145cc, 180cc, 220cc, 250cc, 290cc
• 223459 - 60 mesh (290 micron), 145cc, 180cc, 220cc, 250cc, 290cc
• 238436 - 30 mesh screen (25-count carton)
• 238438 - 60 mesh screen (25-count carton)
• 238442 - 200 mesh screen (25-count carton)

This filter element is specifically designed for the larger Xtreme lower configurations (145cc, 180cc, 220cc, 250cc, 290cc) and provides the finest filtration in the series at 100 mesh/149 micron. Part of pump lower filter screens family with different mesh sizes available for various filtration requirements Available in both 25-count carton and 3-pack options. Part of a complete filter system with multiple porting options for different gauge, drain valve, and fluid line configurations.

Reference Manuals

• 300578 (Page 6)
• 340146 (Page 7)
• 345020 (Page 58)
• 348645 (Page 9)
• 349820 (Page 15)
