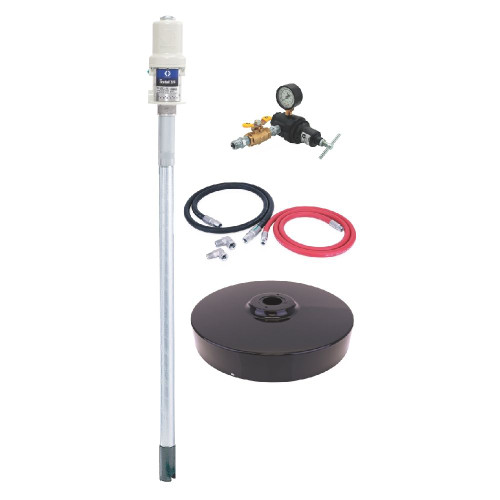

GRACO 246906 - Mini Fire-Ball 225, 3:1 55 Gallon Oil Pump - Cover-Mounted Package, 540 PSI
You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Additional Specifications
- Max Working Pressure: 540 PSI (37 bar, 3.7 MPa) Maximum Working Pressure
- Pump Type: Fire-Ball 225
- Drum Capacity: 55 gallon
- Drum Type: Open Drum
- Stationary Type: S
- Model Number: 246906
- Alternate Model: 24M263
- Drum Size: 55-Gallon
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Motor Effective Diameter (in) | 2.25 |
| Application | Industrial |
| Compatible Material | Oil |
| Cycles Per Gallon | 43.5 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | Petroleum- and synthetic-based oils (motor, gear and ATF) |
| Includes | Hose Installation Kit, Drum Cover, Air Regulator |
| Maximum Air Consumption (SCFM) | 20 |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 100 |
| Maximum Working Pressure (MPa) | 3.7 |
| Maximum Working Pressure (psi) | 540 |
| Power Type | Pneumatic |
| Pump Ratio | 3:1 |
| Sound Power Level (dB(A)) | 85.6 |
| Sound Pressure Level (dB(A)) | 77.8 |
| Type | Pneumatic Piston Pump |
| Weight (lb) | 16 |
| Wetted Material | Steel, Polyurethane, Aluminum, Buna-N |
Compatible Equipment
Related Parts
Kit Contents
- Hose Kit
- Cover
- Bung Adapter
- 248097 - PUMP, 3:1 Ratio Fire-Ball
- 222063 - HOSE AND FITTING KIT
- 300326 - COVER
- 224512 - AIR REGULATOR KIT, model 245906
- 24M266 - CE AIR REGULATOR KIT, model 24M263
- 176270 - SHIM
3:1 Fire-Ball 225 Pump model, stationary type, includes hose kit, cover, and bung adapter This is a complete 55-gallon open drum package for 3:1 ratio Fire-Ball pump systems. Includes pump, hoses, fittings, cover, air regulator kit and shim.
